Product Detailed Parameters
- Description：5G/4G FPC ANTENNA, N77 OPTIMIZED
- Series：-
- Mfr：KYOCERA AVX
- Package：Box
- RF Family/Standard：Cellular
- Frequency Group：Wide Band
- Frequency (Center/Band)：788.5MHz, 2.045GHz, 4.15GHz
- Frequency Range：617MHz ~ 960MHz, 1.4GHz, 2.69GHz, 3.3GHz ~ 5GHz
- Antenna Type：Flat Patch
- Number of Bands：3
- VSWR：5, 3, 3.7
- Return Loss：-
- Gain：2.5dBi, 6dBi, 5.5dBi
- Features：Cable - 100mm
- Termination：MHF4L
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Adhesive
- Height (Max)：0.006" (0.14mm)
- Applications：4G, 5G, CAT-M, Cellular, LoRa, LTE, M2M, NB-IoT, Sigfox, Wi-Fi, Zigbee™
- Power - Max：-
Download product information
Overview

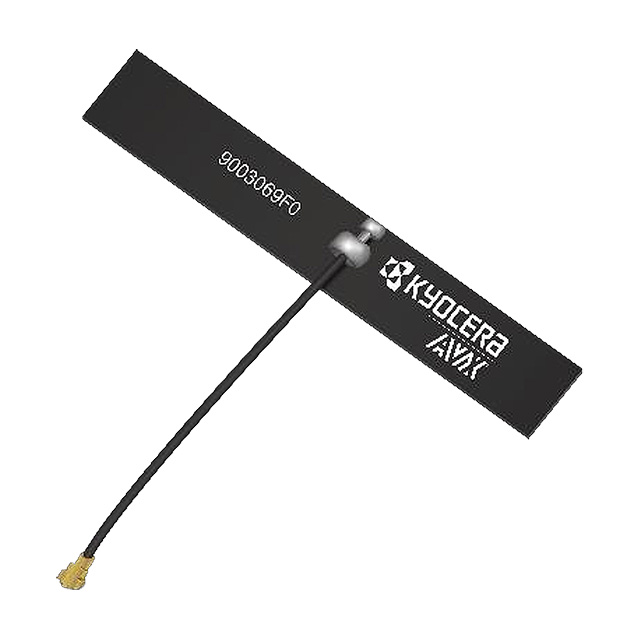

The KYOCERA AVX 9003069F0-AC10L0100 is a flexible printed circuit (FPC) antenna designed for cellular and IoT applications. It operates within a frequency range of 617 MHz to 5 GHz, covering LTE, 5G NR, NB-IoT, LoRaWAN, and Sigfox bands. The component features N77 optimization for high-band MIMO performance in 5G modules. Key center frequencies include 788.5 MHz, 2.045 GHz, and 4.15 GHz. It provides a gain of 5.5 dBi with a 50-ohm impedance, suitable for embedded FR4 and external antenna configurations in compact devices.
Feature Summary
- Optimized for N77 high-band MIMO operations in 5G New Radio modules
- Supports wideband coverage including LPWAN, LoRaWAN, and NB-IoT standards
- Flexible FPC construction enables integration into compact embedded designs
Applications
- 5G NR mobile communication modules
- IoT gateways supporting NB-IoT and Sigfox
- Embedded cellular devices requiring high-band MIMO capabilities
Procurement Notes
Verify the specific ordering suffix against official KYOCERA AVX documentation to ensure correct configuration. Confirm RoHS compliance status through current datasheets. Check manufacturer standard lead times prior to procurement planning. Ensure the part number matches the required N77 optimization for intended 5G applications.
Selection Notes
Select this component when N77 band optimization is critical for 5G module performance. Consider the 5.5 dBi gain and 50-ohm impedance requirements for system matching. Evaluate the flexible form factor against mechanical constraints of the target enclosure. Verify compatibility with LPWAN or NB-IoT protocols if multi-standard support is needed.
Part Context
This part belongs to the KYOCERA AVX Embedded Cellular/5G Antennas family. It complements other FR4 and FPC solutions for diverse connectivity needs. The series supports various IoT standards alongside traditional cellular networks. It addresses the demand for compact, high-performance antennas in modern wireless devices.
Replacement Considerations
Consult official substitution lists for compatible variants. Verify electrical parameters and physical dimensions before replacing. Ensure the alternative maintains N77 optimization if 5G functionality is required.
