Product Detailed Parameters
- Description：GPS 18X18X2MM CERAMIC PATCH ANTE
- Series：-
- Mfr：KYOCERA AVX
- Package：Tray
- RF Family/Standard：Navigation
- Frequency Group：UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：1.58GHz
- Frequency Range：1.57GHz ~ 1.58GHz
- Antenna Type：Ceramic Patch
- Number of Bands：1
- VSWR：-
- Return Loss：-6dB
- Gain：1dBi
- Features：-
- Termination：-
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Adhesive
- Height (Max)：0.079" (2.00mm)
- Applications：GPS
- Power - Max：-
Download product information
Overview

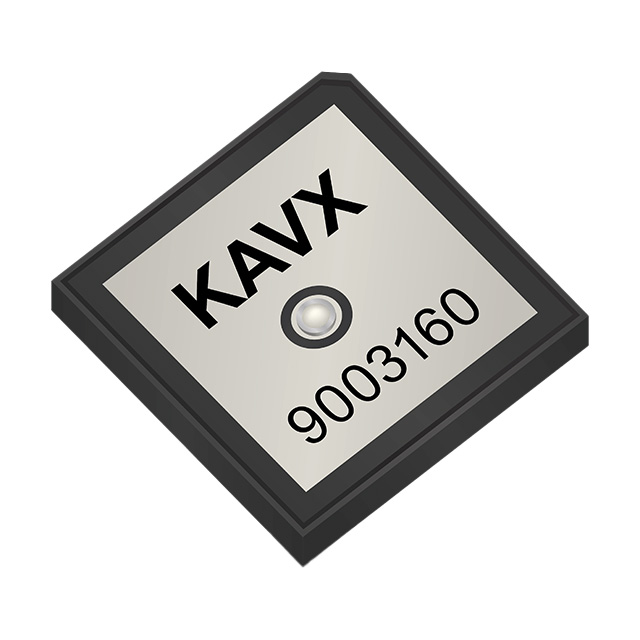

The KYOCERA AVX 9003160 is a slim GPS ceramic patch antenna designed for embedded applications. It operates at the L1 frequency of 1.575 GHz, supporting standard GPS signals. The component features a compact physical footprint measuring 18x18 mm with an ultra-thin profile of only 2 mm in height. This low-profile design facilitates integration into space-constrained devices while maintaining reliable signal reception capabilities required for navigation and tracking systems.
Feature Summary
- Ultra-slim 2mm height profile enables thinner device designs
- Embedded ceramic patch construction for robust performance
- Optimized for M2M and vehicle tracking applications
Applications
- Vehicle tracking systems
- M2M (Machine-to-Machine) devices
- GPS-enabled consumer electronics
Procurement Notes
Verify the specific ordering suffix to ensure compatibility with required connector types or mounting configurations. Confirm that the lead time aligns with production schedules, as manufacturing delays may occur. Request the latest datasheet to validate electrical specifications against current design requirements before finalizing procurement decisions.
Selection Notes
Select this antenna when minimal board thickness is critical for the product form factor. The 18x18 mm footprint suits dense PCB layouts where larger antennas cannot fit. Ensure the application environment supports ceramic materials and verify ground plane requirements for optimal radiation efficiency at 1.575 GHz.
Part Context
This component belongs to the KYOCERA AVX Savvi series of embedded ceramic antennas. The series targets designers seeking high functionality in compact wireless modules. The 9003160 model specifically addresses the need for reduced z-height in GPS hardware without compromising signal integrity or mechanical durability.
Replacement Considerations
Consult official substitution lists for compatible alternatives. Verify that any replacement maintains the 18x18 mm footprint and 2mm height constraints. Ensure electrical parameters match the original design requirements.
