Product Detailed Parameters
- Description：GPS/GLONASS 25X25X4 SMT CERAMIC
- Series：-
- Mfr：KYOCERA AVX
- Package：Bag
- RF Family/Standard：-
- Frequency Group：-
- Frequency (Center/Band)：-
- Frequency Range：-
- Antenna Type：-
- Number of Bands：-
- VSWR：-
- Return Loss：-
- Gain：-
- Features：-
- Termination：-
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：-
- Height (Max)：-
- Applications：-
- Power - Max：-
Download product information
Overview

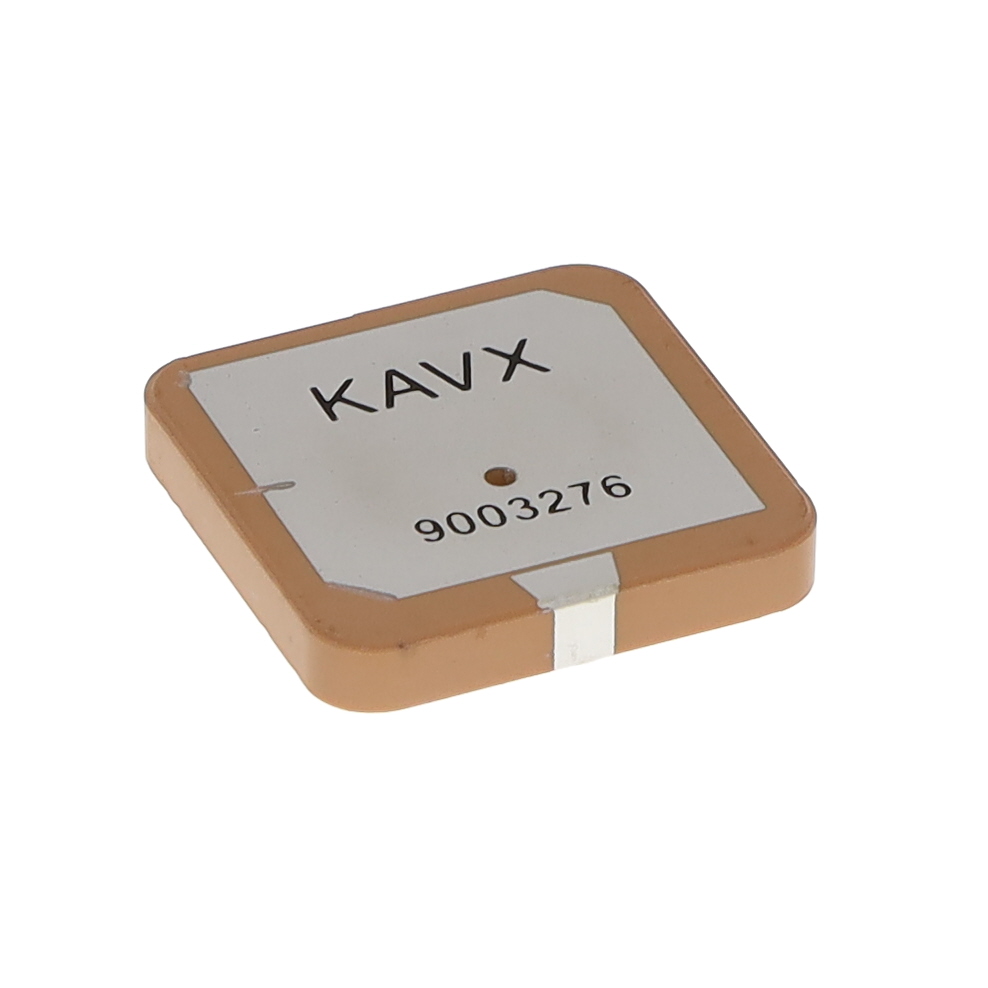

The KYOCERA AVX 9003276 is a Surface Mount Technology (SMT) ceramic patch antenna designed for Global Navigation Satellite System (GNSS) applications. It operates within the frequency range of 1.56 GHz to 1.61 GHz, covering GNSS bands E1, L1, B1, and G1. The component features physical dimensions of 25 mm x 25 mm x 4 mm and provides a gain of 4.4 dBi with an efficiency of 76%. This SMD patch antenna supports M2M device requirements.
Feature Summary
- Supports multiple GNSS bands including E1, L1, B1, and G1
- High radiation efficiency of 76%
- Compact surface mount design suitable for space-constrained devices
Applications
- Vehicle tracking systems
- Machine-to-Machine (M2M) communication devices
- GPS-enabled IoT modules
Procurement Notes
Verify the manufacturer part number 9003276 against official KYOCERA AVX documentation to ensure authenticity. Confirm that the received components match the specified 25x25x4mm package and SMT mounting style. Check for any specific handling instructions regarding electrostatic discharge during storage and assembly processes.
Selection Notes
Select this component when designing compact GNSS receivers requiring support for multiple global satellite constellations. The 4.4 dBi gain and 76% efficiency make it suitable for applications demanding reliable signal reception in limited spatial envelopes. Ensure the host PCB layout accommodates the 25x25mm footprint and ground plane requirements for optimal performance.
Part Context
This antenna belongs to the KYOCERA AVX series of SMD patch antennas, which are engineered to meet the functional and performance needs of modern M2M designs. These antennas provide innovative solutions for device designers seeking higher functionality in smaller form factors compared to traditional antenna technologies.
Replacement Considerations
Consult official KYOCERA AVX documentation for verified substitute part numbers. Do not assume cross-compatibility with other manufacturers' GNSS antennas without verifying electrical parameters and mechanical dimensions.
