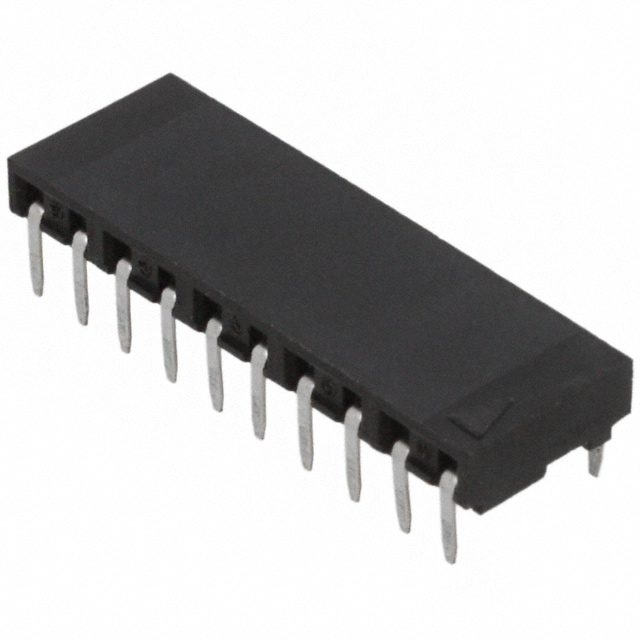

901481110

901481110 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Molex. Its product description is CONN RCPT 10POS 0.1 TIN PCB R/A. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 901481110

• Description：CONN RCPT 10POS 0.1 TIN PCB R/A
• Series：C-Grid 90148
• Mfr：Molex
• Package：Tube
• Connector Type：Receptacle
• Contact Type：Female Socket
• Style：Board to Board
• Number of Positions：10
• Number of Positions Loaded：All
• Pitch - Mating：0.100" (2.54mm)
• Number of Rows：1
• Row Spacing - Mating：-
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：40.0µin (1.02µm)
• Insulation Color：Black
• Insulation Height：0.130" (3.30mm)
• Contact Length - Post：0.114" (2.90mm)
• Operating Temperature：-55°C ~ 105°C
• Material Flammability Rating：-
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：-
• Current Rating (Amps)：3A
• Voltage Rating：350V

Headers, Receptacles, Female Sockets datasheet and documents for 901481110
