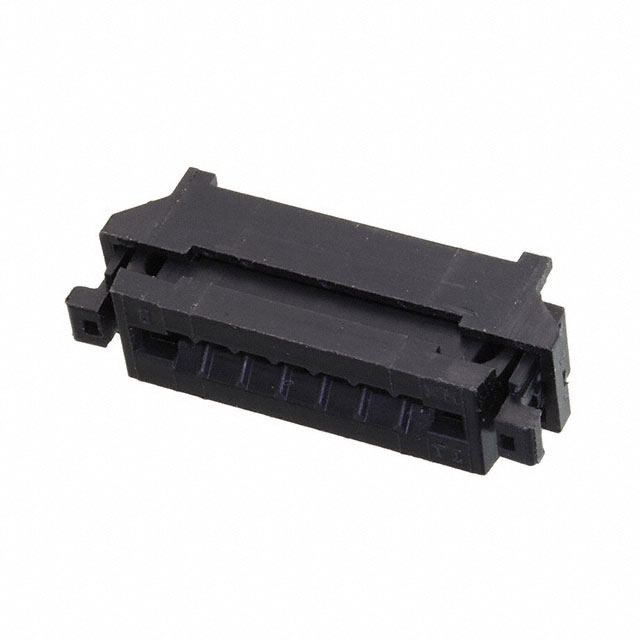

FFC, FPC (Flat Flexible) Connector Assemblies 905004007 product image

905004007

$0.67

Description：CONN FFC 7POS 2.54MM R/A
Series：90500
Mfr：Molex
Package：Tube

SKU:debe483a4e19 Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Molex

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

905004007 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Molex. Its product description is CONN FFC 7POS 2.54MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 905004007

Description：CONN FFC 7POS 2.54MM R/A
Series：90500
Mfr：Molex
Package：Tube
Flat Flex Type：FFC
Mounting Type：Through Hole, Right Angle
Connector/Contact Type：Contacts, Top and Bottom
Number of Positions：7
Pitch：0.100" (2.54mm)
Termination：Solder
FFC, FCB Thickness：0.20mm
Height Above Board：0.285" (7.24mm)
Locking Feature：Slide Lock
Cable End Type：Notched
Contact Material：Phosphor Bronze
Contact Finish：Tin
Housing Material：Polybutylene Terephthalate (PBT), Glass Filled
Actuator Material：Polybutylene Terephthalate (PBT), Glass Filled
Features：Zero Insertion Force (ZIF)
Voltage Rating：250V
Operating Temperature：-40°C ~ 85°C
Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for 905004007

905004007
