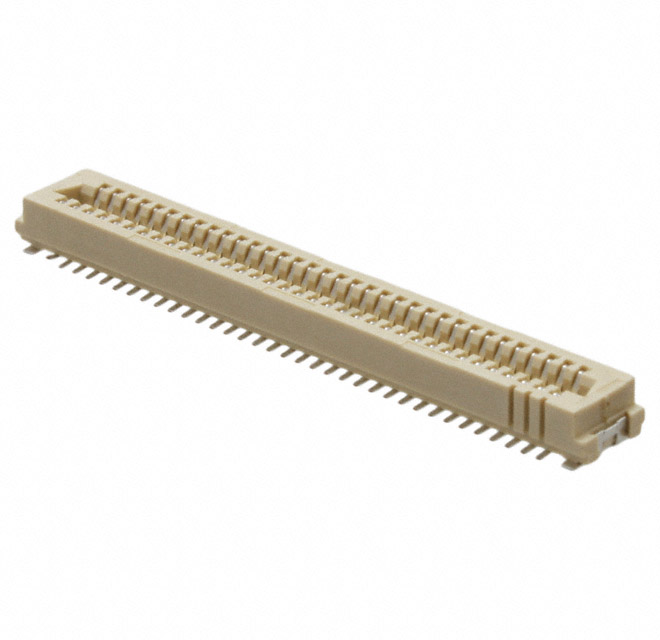

Arrays, Edge Type, Mezzanine (Board To Board) 91932-31169LF product image

91932-31169LF

$2.84

Description：CONN RCPT 69POS SMD GOLD
Series：Conan™, MezzSelect™
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:5bf499e33829 Category: Arrays, Edge Type, Mezzanine (Board to Board) Brand: Amphenol ICC (FCI)

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

91932-31169LF is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN RCPT 69POS SMD GOLD. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for 91932-31169LF

Description：CONN RCPT 69POS SMD GOLD
Series：Conan™, MezzSelect™
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Receptacle, Outer Shroud Contacts
Number of Positions：69
Pitch：0.039" (1.00mm)
Number of Rows：2
Mounting Type：Surface Mount
Features：Board Guide, Solder Retention
Contact Finish：Gold or Gold, GXT™
Contact Finish Thickness：15.0µin (0.38µm)
Mated Stacking Heights：4.15mm, 4.5mm, 5mm, 5.5mm, 6mm, 7mm, 7.52mm
Height Above Board：0.129" (3.28mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for 91932-31169LF

91932-31169LF
