920-0136-01

Headers, Male Pins Overview

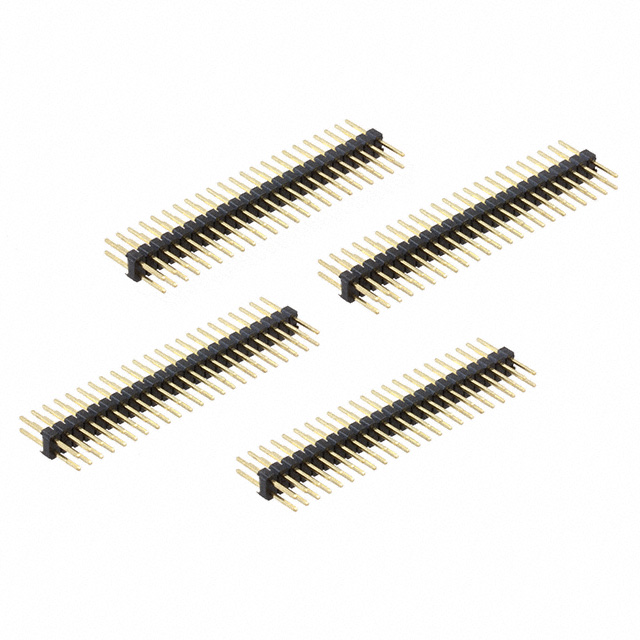

The SchmartBoard 920-0136-01 is a vertical male header connector designed for electronic prototyping. It features 46 positions arranged in two rows with a 2.54 mm pitch. The component utilizes through-hole termination and brass contacts with gold plating. Packaged as a set of four pieces, it supports surface mount and through-hole circuit assembly. The connector is RoHS compliant and operates within standard industrial temperature ranges.

Headers, Male Pins Feature Summary

• Facilitates rapid prototyping by supporting both surface mount and through-hole components
• Enables modular circuit block testing through individual physical connection capabilities
• Simplifies hand soldering of advanced chip technologies via standardized board interfaces

Headers, Male Pins Applications

• Electronic circuit prototyping systems
• Development board interconnections
• Surface mount component adapter boards
• Modular circuit block assembly

Headers, Male Pins Procurement Notes

Verify the specific quantity per package, as this part number denotes a multi-piece set rather than a single unit. Confirm that the 46-position, two-row configuration matches the target design requirements. Ensure compatibility with existing SchmartBoard system standards for seamless integration into prototyping workflows. Check RoHS compliance status if required by project specifications.

Headers, Male Pins Selection Notes

Select this component when a high-density, dual-row header is required for vertical mounting on prototype boards. The 2.54 mm pitch ensures compatibility with standard breadboard and jumper wire systems. Consider the multi-pack nature of the product for cost-effective scaling across multiple prototype iterations or larger circuit designs requiring extensive interconnect points.

Headers, Male Pins Part Context

This part belongs to the SchmartBoard ecosystem, a specialized prototyping system aimed at simplifying the assembly of complex electronic circuits. The system allows users to work on discrete circuit blocks individually before physical connection. This specific header facilitates the transition from surface mount components to accessible through-hole connections, bridging modern chip technologies with traditional prototyping methods.

Headers, Male Pins Replacement Considerations

No direct public substitute part numbers are confirmed for this specific multi-piece set configuration. Generic 46-position, 2.54mm pitch dual-row headers may serve as functional equivalents but lack the integrated prototyping system compatibility and specific packaging format of the original SchmartBoard component.
