Fixed Inductors Overview

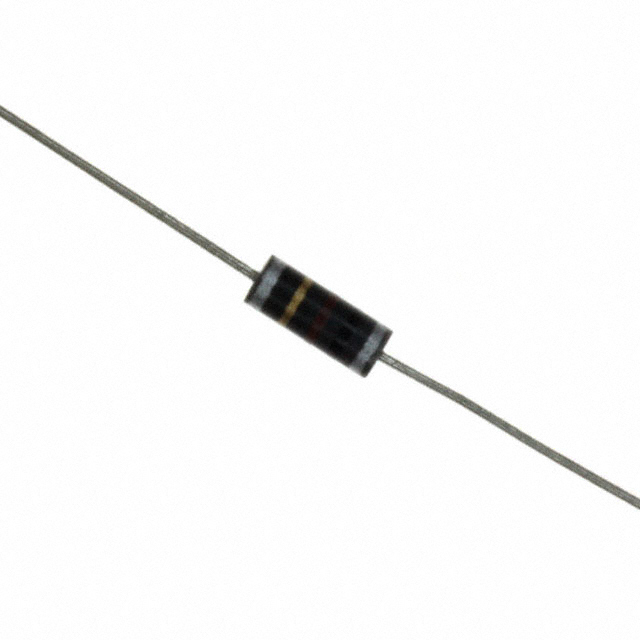

The Bourns Inc. 9230-52 is a fixed inductor from the 9230 Series, featuring an unshielded molded axial construction. It provides an inductance of 22 µH with a tolerance of ±10%. The component has a maximum DC resistance (DCR) of 3.3 Ohms and supports a current rating of 190 mA. Designed for through-hole mounting, it utilizes ferrite core technology to ensure stable performance across operating temperatures.

Fixed Inductors Feature Summary

• Unshielded molded axial design for standard through-hole integration
• Ferrite core construction for reliable magnetic properties
• Fixed inductance value suitable for filtering applications

Fixed Inductors Applications

• General purpose signal filtering
• Power supply input/output stages
• Electronic circuit noise suppression

Fixed Inductors Procurement Notes

Verify the specific suffix RC against the manufacturer's official datasheet to confirm availability status and compliance certifications. Ensure the axial lead spacing matches the target PCB footprint requirements before ordering. Cross-reference the 22 µH inductance and 190 mA current rating with the system design specifications to confirm suitability for the intended application environment.

Fixed Inductors Selection Notes

Select this component when an unshielded axial inductor is required for low-current applications. The 3.3 Ohm DCR limit must be compatible with the circuit's power loss constraints. Consider the physical dimensions of the molded body for clearance within the enclosure. Verify that the ferrite core material aligns with the desired frequency response characteristics for the specific filtering needs.

Fixed Inductors Part Context

This part belongs to the Bourns 9230 Series of molded axial inductors. The series offers various inductance values and current ratings in a consistent package style. The 9230-52 variant specifically targets applications requiring 22 µH inductance with moderate current handling capabilities in a compact axial form factor.

Fixed Inductors Replacement Considerations

Consult the official Bourns datasheet for direct cross-references or alternative part numbers within the 9230 series that match the required electrical parameters. Ensure any substitute maintains the same axial package dimensions and mounting compatibility.
