929500-01-15

Headers, Male Pins Overview

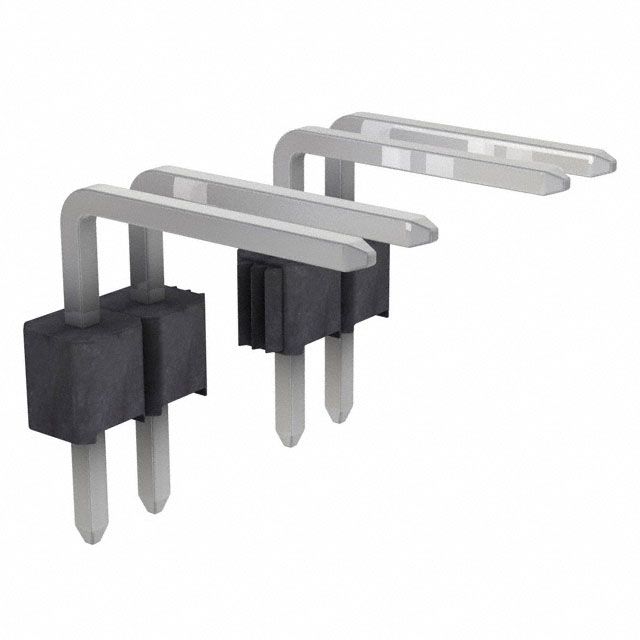

The 3M 929500-01-15 is a pin strip header connector from the 929 Series, designed for board-to-board applications. It features a single row with 15 positions and a 0.100" (2.54mm) pitch. The connector utilizes through-hole, right-angle mounting with solder terminals. Contact material is copper alloy, plated with tin-lead to a thickness of 100.0µin (2.54µm). Insulation is made of glass-filled polyester (PBT), rated UL94 V-0 in black. Rated current is 2.5A, operating temperature range is -40°C to 105°C.

Headers, Male Pins Feature Summary

• Right-angle through-hole design for vertical board interconnection
• Tin-lead contact plating ensures reliable signal transmission
• Glass-filled polyester insulation provides high thermal stability

Headers, Male Pins Applications

• Board-to-board electronic interconnections
• Industrial control system circuit boards
• Consumer electronics internal wiring

Headers, Male Pins Procurement Notes

Verify RoHS compliance status as tin-lead contacts may indicate non-compliance with lead-free regulations. Confirm availability as this series may have discontinued variants. Ensure mating connectors match the 0.100" pitch and single-row configuration. Check for specific packaging requirements such as bulk or tape-and-reel options if automated assembly is required.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle connection is necessary for dense PCB layouts. The 2.5A rating suits general signal and low-power applications. Consider the tin-lead plating for cost-sensitive projects where lead-free alternatives are not mandated. Verify that the 15-position count aligns with circuit requirements to avoid unused pins.

Headers, Male Pins Part Context

This part belongs to the 3M 929 Series Pin Strip Headers, a standard line of rectangular connectors. These headers are widely used in legacy and modern electronics for reliable mechanical and electrical connections. The 929500 base number indicates the series family, while the suffix specifies position count and orientation.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 0.100" pitch single-row right-angle headers from manufacturers like Molex or Samtec. Ensure mating socket connectors match the pin diameter and insulation height. Verify that replacement parts meet the same UL94 V-0 flammability rating and temperature specifications.
