929667-04-23-I

Headers, Male Pins Overview

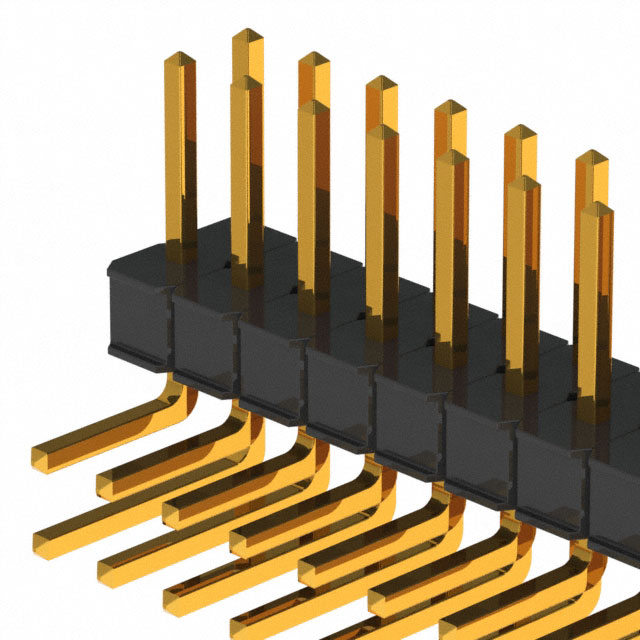

The 3M 929667-04-23-I is a right-angle pin header connector from the 929 series, designed for through-hole board-to-board applications. It features a 2.54mm pitch with 46 positions arranged in two rows. The contacts are gold-plated copper alloy pins with a mating length of 5.97mm and a post length of 3.68mm. The insulator is made of PCT material rated UL94 V-0, operating between -40°C and 105°C. Rated at 2.5A, this push-pull style connector lacks a shroud.

Headers, Male Pins Feature Summary

• Stackable design expands circuit board layout flexibility
• Solder tabs facilitate thermal management during wave soldering processes
• Breakaway capability allows for flexible prototype and custom sizing

Headers, Male Pins Applications

• Board-to-board interconnections
• Line-to-board connections
• Industrial automation systems
• Data center equipment

Headers, Male Pins Procurement Notes

Verify component availability status as current records indicate discontinuation. Confirm that the specific suffix matches required plating and orientation specifications. Ensure compatibility with mating receptacles within the same 929 series family to maintain correct contact engagement dimensions and electrical performance standards.

Headers, Male Pins Selection Notes

Select this model when right-angle mounting is required for dense two-row configurations. The gold plating provides superior corrosion resistance compared to tin options. Verify that the PCB footprint accommodates the specified contact lengths and that the assembly process supports the necessary thermal profiles for the PCT insulation material.

Headers, Male Pins Part Context

This component belongs to the 3M 929 series of pin strips, which offers versatile single and double row configurations. The series supports both horizontal and vertical orientations with breakaway segments. It utilizes high-temperature resistant PCT insulation suitable for wave and infrared soldering environments, ensuring reliable performance in demanding electronic assemblies.

Headers, Male Pins Replacement Considerations

Direct substitutes include other 929 series headers with identical 46-position, dual-row, right-angle specifications. Verify matching pitch, plating type, and insulation material before substitution. Cross-reference part numbers such as 929667 variants to ensure mechanical and electrical compatibility.
