929850-01-08-RA

Headers, Receptacles, Female Sockets Overview

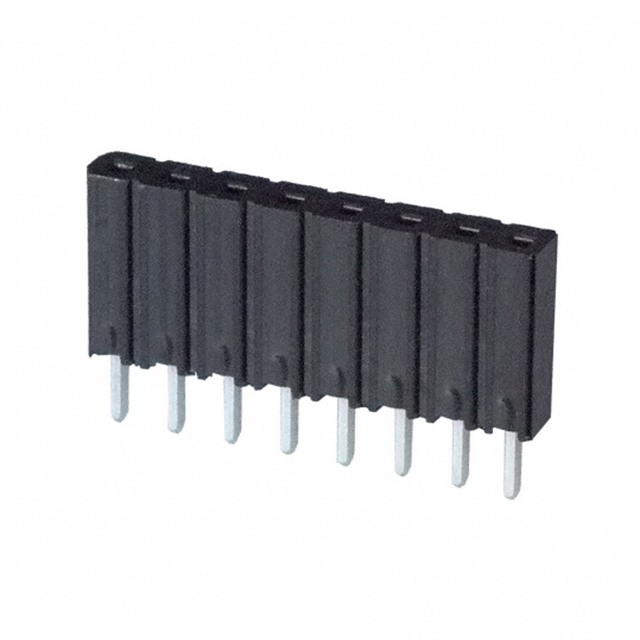

The 3M 929850-01-08-RA is a single-row, 8-position vertical pin header connector from the 929 series. It features a 0.100-inch (2.54mm) pitch and is designed for through-hole mounting on printed circuit boards. The connector utilizes gold-plated contacts with a nickel substrate to ensure reliable signal transmission. It is rated for 2.5A current and operates within a temperature range of -40°C to 105°C. The housing is made of glass-reinforced PCT material, classified UL94 V-0 for flammability.

Headers, Receptacles, Female Sockets Feature Summary

• Low-profile design with board-locking structure for stable PCB mounting
• Fork-style terminal design facilitates wave soldering production processes
• Optional board-end retaining feature enhances mechanical stability during assembly

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnection systems
• Industrial automation control units
• Data center hardware infrastructure
• General electronic equipment signal routing

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix 'RA' indicates right-angle or specific plating configuration as per manufacturer datasheet TS-0815. Confirm RoHS compliance status and check for end-of-life notices, as some 929 series variants may have discontinuation statuses. Ensure mating receptacles match the 0.100-inch pitch and contact type requirements.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, single-row header with gold contacts is required for through-hole applications. The 8-position count suits moderate density connections. Consider the 260°C process temperature rating for compatibility with standard wave soldering profiles. Verify that the board-locking feature meets the mechanical retention needs of the final assembly.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the 3M 929 series of Pin Strip connectors, which are widely used in electronic interconnect solutions. The series offers various positions and configurations, including single and double rows. The 929850 variant specifically denotes a single-row configuration with gold-plated contacts, distinguishing it from tin-plated counterparts like the 929834 series.

Headers, Receptacles, Female Sockets FAQ

What is the maximum operating temperature for this connector?

The connector is rated for an operating temperature range of -40°C to 105°C.

Does this connector support wave soldering?

Yes, the fork-style terminal design and welding studs facilitate wave soldering production, with a process temperature rating of 260°C according to J-STD-020C.
