929870-01-07-RB

Headers, Receptacles, Female Sockets Overview

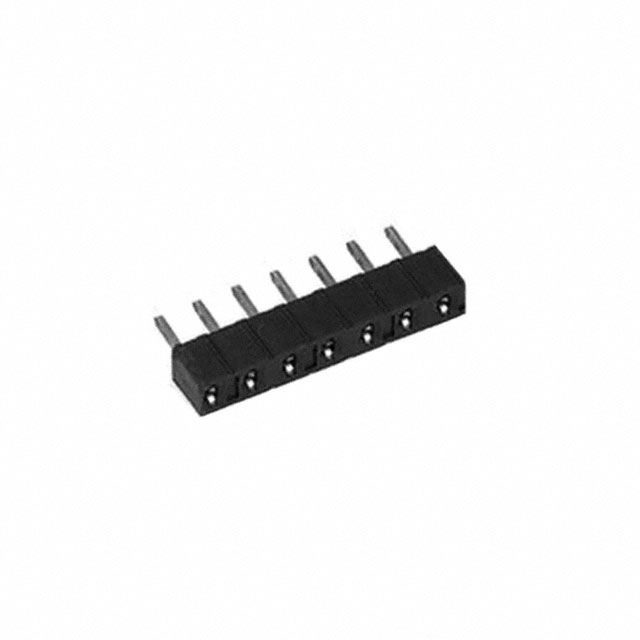

The 3M 929870-01-07-RB is a 7-position board-to-board receptacle connector from the 929 series. It features a 0.100-inch (2.54mm) pitch and utilizes a single row of female fork contacts with gold plating for mating surfaces. Designed for through-hole mounting, it employs a push-pull fastening mechanism to secure connections between printed circuit boards.

Headers, Receptacles, Female Sockets Feature Summary

• Fork contact design facilitates reliable mating engagement
• Push-pull fastening system ensures secure mechanical retention
• Low-profile construction supports compact board stacking applications

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnections
• Industrial automation systems
• Data center hardware assemblies

Headers, Receptacles, Female Sockets Procurement Notes

Verify component authenticity by cross-referencing the manufacturer part number against official 3M documentation. Confirm RoHS compliance status and ensure the specific suffix matches required termination and plating specifications before procurement.

Headers, Receptacles, Female Sockets Selection Notes

Select this model for vertical through-hole applications requiring low-profile board stacking. The 2.54mm pitch and single-row configuration suit dense layouts where space constraints limit connector height options.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the 3M 929 series of pin strip connectors. The series offers various position counts and termination styles, providing standardized interconnect solutions for diverse electronic assembly requirements across multiple industries.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible counterparts include 929870-01-07-RA and 929870-01-07-10. Verify that alternative suffixes match the required contact plating and termination type for direct substitution.
