9302-2A1S24N111ACB30KA

Overview

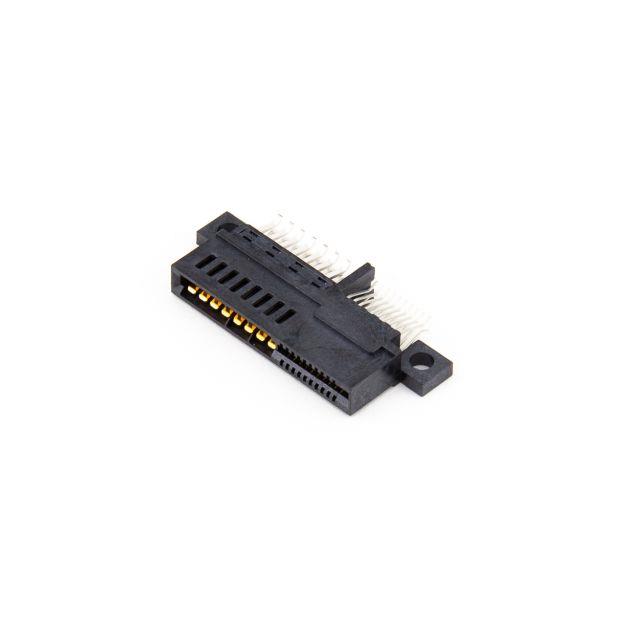

The Oupiin 9302-2A1S24N111ACB30KA is a dual-edge card edge connector designed for high-power and signal transmission. It features 42 positions, comprising 24 signal and 18 power contacts. The connector utilizes cantilever contact types with gold plating on black liquid crystal polymer (LCP) insulation. It supports an operating temperature range of -55°C to +105°C and is compatible with 1.57mm thick cards.

Feature Summary

• Dual-edge design supporting simultaneous power and signal connectivity
• Cantilever contact structure ensuring stable mating performance
• Gold-plated contacts for reliable conductivity and corrosion resistance
• High-temperature resistant LCP insulation material

Applications

• High-power server backplanes
• Data center acceleration cards
• Industrial control system interfaces
• Telecommunications equipment modules

Procurement Notes

Verify the specific ordering suffix against the manufacturer's latest datasheet to ensure compatibility with required card thickness and contact finish specifications. Confirm that the dual-edge configuration matches the target PCB layout requirements. Check for any recent updates to the RoHS compliance status or material certifications before finalizing procurement orders.

Selection Notes

Select this component when high current carrying capacity combined with signal integrity is required in a compact form factor. Ensure the application environment falls within the specified -55°C to +105°C temperature range. Verify that the host board can accommodate the dual-edge connector footprint and that the mating card thickness aligns with the 1.57mm standard supported by this series.

Part Context

This part belongs to the Oupiin 9302 Series, which specializes in HFCE® (High Flow Card Edge) connectors. The series is engineered to handle up to 12.5A per contact and voltages up to 1000V. It is designed for applications requiring robust power delivery alongside signal transmission in dense electronic assemblies.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should consult the manufacturer directly for cross-reference information or equivalent alternatives from other suppliers.
