9302-2A1S24N11ACB30PA

Overview

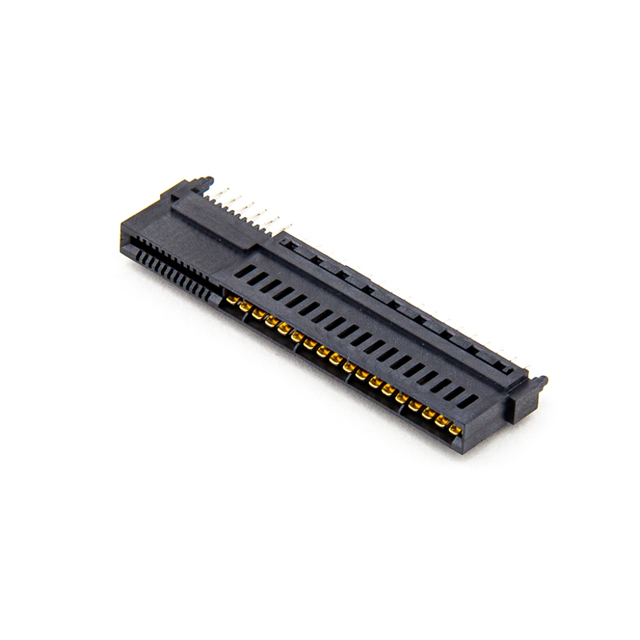

The Oupiin 9302-2A1S24N11ACB30PA is a dual-edge female card edge connector featuring 60 positions, configured as 24 signal and 36 power contacts. It utilizes gold-plated contacts with a black housing. The component supports through-hole termination and operates within a temperature range of -55°C to 105°C. Designed for high-power and signal applications, it complies with AdvancedTCA standards.

Feature Summary

• Dual-edge female configuration supporting simultaneous high-power and signal transmission
• Gold contact finish ensuring reliable conductivity and corrosion resistance
• Black housing design providing visual contrast and structural integrity

Applications

• Advanced Telecommunications Computing Architecture (ATCA) systems
• High-power signal card edge interconnections
• Telecommunications infrastructure equipment
• Industrial control modules requiring robust edge connectivity

Procurement Notes

Verify the specific ordering suffix against official Oupiin documentation to confirm pin configuration and termination type. Ensure compatibility with mating card edge thicknesses and PCB stack-up requirements. Cross-reference part numbers with authorized distributors to avoid counterfeit components. Confirm operating temperature ratings match system environmental specifications before finalizing procurement orders.

Selection Notes

Select this connector for applications requiring high-density power and signal integration in dual-edge formats. Consider the 60-position layout for balanced power distribution needs. Evaluate thermal management requirements given the high-current capabilities. Ensure mechanical fit within chassis constraints and verify soldering process compatibility with through-hole termination methods for reliable assembly.

Part Context

This component belongs to Oupiin's high-power and signal card edge connector series, designed for demanding telecommunications and industrial applications. It aligns with AdvancedTCA specifications, offering a compact solution for complex interconnect needs. The series emphasizes stability and high current handling, serving as a critical interface between backplanes and plug-in cards in modern network infrastructure.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify exact dimensional and electrical compatibility when considering alternative manufacturers. Check for equivalent position counts and contact configurations to ensure functional interchangeability without redesigning the host PCB or chassis.
