9302-2A1S24P11ACB30DA

Overview

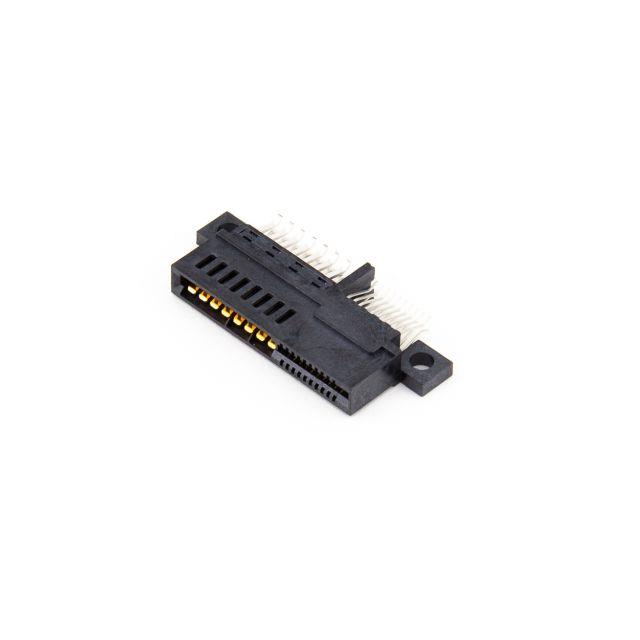

The Oupiin 9302-2A1S24P11ACB30DA is a dual-edge card edge connector designed for high-power and signal applications. It features 60 positions, configured as 24 signal contacts and 36 power contacts. The connector utilizes gold-plated terminals with a black housing. It supports an operating temperature range of -55°C to 105°C and is RoHS compliant.

Feature Summary

• Dual-edge design accommodating both signal and power requirements in a single interface
• Gold-plated contact surfaces to ensure reliable conductivity and corrosion resistance
• Black housing construction providing visual contrast and structural integrity

Applications

• High-power server blade interconnects
• Telecommunications backplane systems
• Industrial control module interfaces

Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm terminal plating thickness and housing material variations. Ensure compatibility with standard card edge thicknesses before procurement. Confirm RoHS compliance status through official documentation rather than distributor listings.

Selection Notes

Select this component when a dual-edge solution is required to separate high-current power paths from sensitive signal lines. Evaluate the 60-position capacity against board space constraints. Consider the -55°C to 105°C thermal rating for environmental suitability in industrial or telecom enclosures.

Part Context

This part belongs to Oupiin's card edge connector portfolio, which includes various series for different power and signal densities. The 9302 series specifically targets applications requiring robust power delivery alongside signal transmission, distinct from their high-speed BTB or Fakra connector lines.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing pinout configurations and mechanical dimensions is essential if considering alternative manufacturers.
