9302-2A6S24P11ACB30DA-A001

Overview

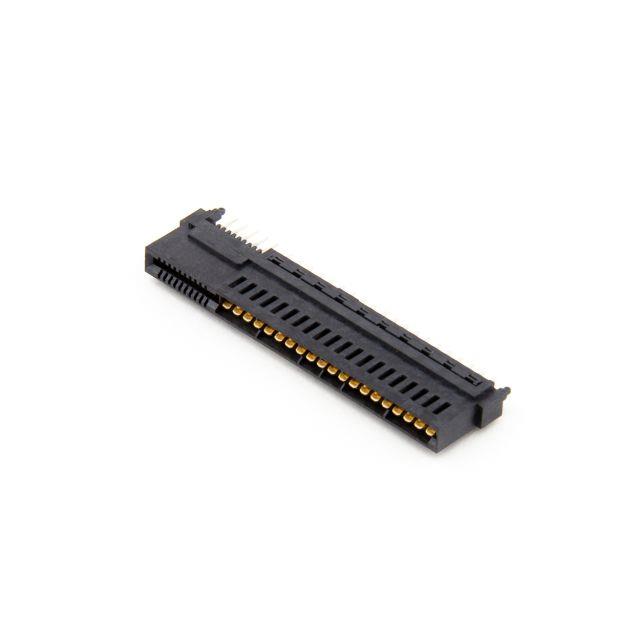

The Oupiin 9302-2A6S24P11ACB30DA-A001 is a dual-edge female connector designed for power and signal card applications. It features 40 positions, configured as 24 signal and 16 power contacts. The component utilizes gold plating on the contact surfaces to ensure reliable electrical performance. The housing is black in color, providing visual identification. This connector supports high-power requirements suitable for demanding electronic systems.

Feature Summary

• Dual-edge female design for secure card insertion
• Combined power and signal contact configuration
• Gold-plated contacts for enhanced conductivity
• Black housing for clear visual identification

Applications

• Power supply modules
• Distribution systems
• High-power electronic cards

Procurement Notes

Verify the exact part number suffix against official Oupiin documentation to confirm pin count and contact finish specifications. Ensure compatibility with mating edge cards regarding mechanical dimensions and electrical ratings. Cross-reference ordering codes with authorized distributors to avoid counterfeit components. Confirm that the specific variant matches the required signal-to-power ratio for your application design.

Selection Notes

Select this connector when a dual-edge female interface is required for mixed power and signal transmission. The 40-position layout offers a balanced distribution of 24 signal and 16 power pins. Consider the gold contact finish for environments requiring low contact resistance. Evaluate the mechanical fit within the target chassis or backplane structure before finalizing the component choice.

Part Context

This component belongs to the Oupiin 9302 series of edgeboard connectors. The series is engineered for high-power and signal card applications. The model designation indicates specific contact arrangements and material choices. It serves as a critical interconnection element in modular electronic systems requiring robust power delivery and data integrity.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model. Verify mechanical and electrical compatibility if considering alternative manufacturers. Consult Oupiin technical support for direct equivalents or updated series replacements.
