9302-4A2S24P111ACB30DA

Overview

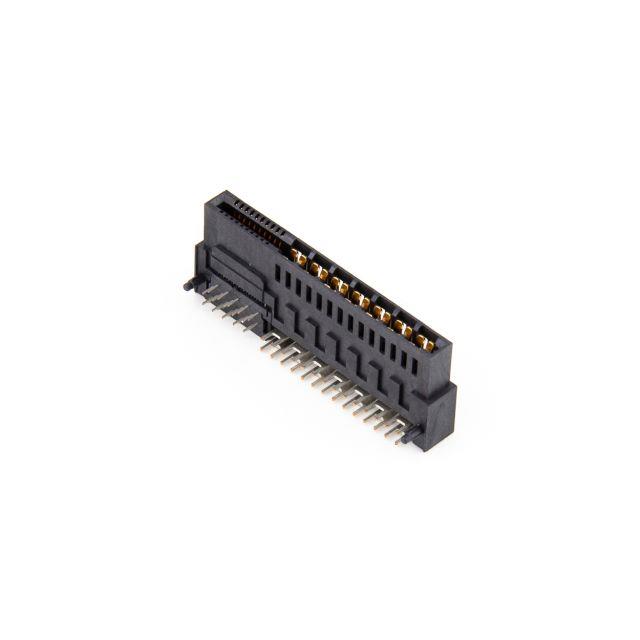

The Oupiin 9302-4A2S24P111ACB30DA is an edgeboard connector designed for power and signal transmission. It features a dual-edge configuration with 42 positions, comprising 24 signal pins and 18 power pins. The contacts are gold-plated phosphor bronze housed in black plastic. This component supports an operating temperature range of -55°C to +105°C and utilizes a female connector type suitable for high-power applications.

Feature Summary

• Dual-edge design accommodating both power and signal transmission within a single unit
• Gold-plated phosphor bronze contacts ensuring stable connectivity and corrosion resistance
• Black housing material providing visual contrast and structural integrity
• Wide operational temperature tolerance for reliable performance in demanding environments

Applications

• High-power server blade connections
• Telecommunications equipment backplanes
• Industrial control system modules
• Power supply unit interconnects

Procurement Notes

Verify the specific pin count configuration matches the target PCB layout requirements before ordering. Confirm that the gold plating specification aligns with the required contact resistance standards for the application. Ensure the operating temperature range meets the environmental conditions of the final assembly. Check for any specific handling instructions regarding the dual-edge interface to prevent mechanical damage during installation.

Selection Notes

Select this model when a combined power and signal solution is required for edge-card applications. Consider the 42-position capacity against the available board space constraints. Evaluate the thermal management needs relative to the specified temperature range. Compare the dual-edge form factor against single-edge alternatives to determine the optimal fit for the system architecture.

Part Context

This part belongs to the Oupiin 9302 series of edgeboard connectors, which are engineered for robust power and signal distribution. The series typically includes various configurations to support different industry standards. Components in this line are characterized by their durability and suitability for high-density electronic assemblies requiring reliable electrical connections.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
