9305-2P12S14B7SAA01

Overview

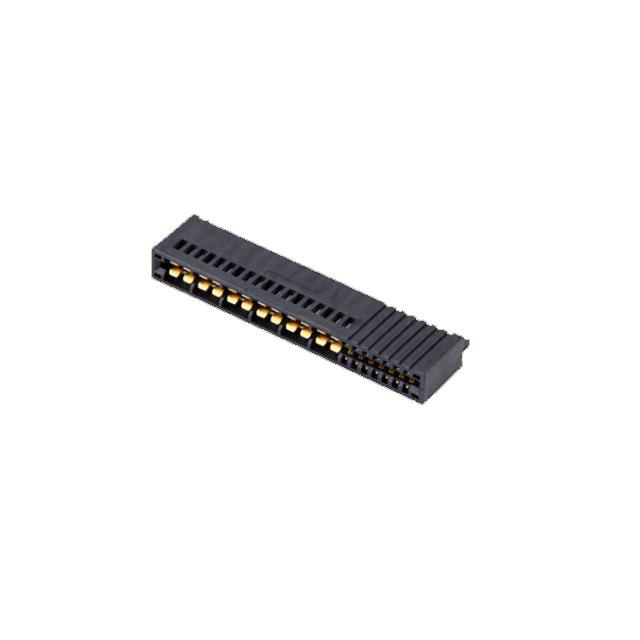

The Oupiin 9305-2P12S14B7SAA01 is a high-power card edge connector from the 9305 series, designed for power and signal transmission. It supports up to 3600W (3KW) capacity with a multi-contact power design that enhances conductivity and reduces contact resistance. The component features a recessed terminal structure to prevent damage during mating and ensures stable signal integrity. It mates with cards of 1.57mm thickness and utilizes PIP-compatible design for precise PCB alignment.

Feature Summary

• Multi-contact power design enhances conductivity and reduces contact resistance
• Recessed terminal design prevents damage during mating
• PIP-compatible design ensures precise PCB alignment

Applications

• High-power data center applications
• OCP M-CRPS specification compliant systems
• Power supply distribution units

Procurement Notes

Verify the specific suffix configuration against the official datasheet to ensure compatibility with required card thickness and pinout arrangements. Confirm RoHS compliance status as indicated in product documentation. Cross-reference part numbers with authorized distributors to avoid counterfeit components. Ensure storage conditions meet manufacturer specifications to maintain connector performance.

Selection Notes

Select this model when high current handling up to 3600W is required alongside signal transmission. Consider the 1.57mm mating thickness constraint during mechanical design. Evaluate thermal management requirements given the high-power capability. Compare against alternative series like 9305-G if higher wattage ratings are needed.

Part Context

This component belongs to the Oupiin 9305 series, which specializes in high-power card edge connectors. The series includes variants supporting different power levels and configurations. The 9305 series is engineered for efficiency in demanding environments, offering robust construction suitable for industrial and data center infrastructure where reliable power delivery is critical.

Replacement Considerations

Check for direct substitutes within the 9305 series such as the 9305-4P12S14B7SAA01 variant. Verify mechanical dimensions and electrical ratings before substitution. Consult official replacement guides for cross-referencing compatible models.
