9391-A1S08P02CB30DLA-HP

Overview

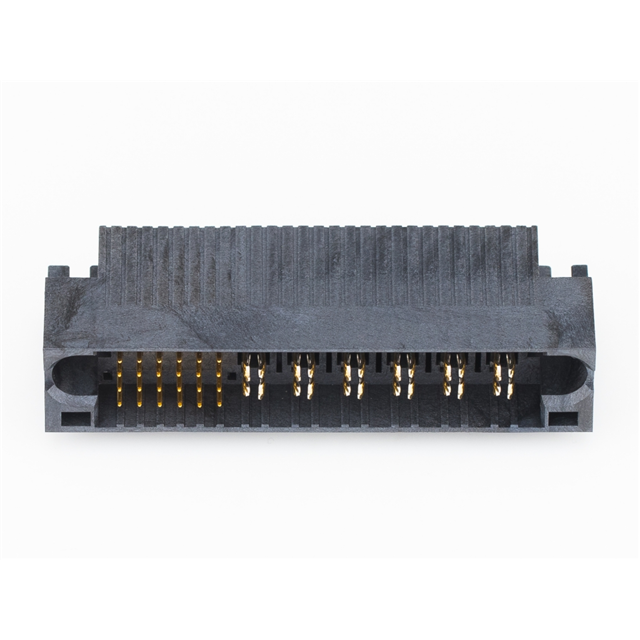

The Oupiin 9391-A1S08P02CB30DLA-HP is a high-power and signal header connector belonging to the PwrSword® 9391-A Series. It features male pins with a 2.54mm pitch and a right-angle configuration, designed for flexible signal integration and low resistance performance. The component supports up to 30A current capacity per pin, ensuring reliable power delivery in demanding environments. This rectangular connector utilizes wave soldering assembly methods and operates within a temperature range of -40°C to +105°C. It is available in plugin packages and serves as a robust solution for applications requiring combined high-power and signal transmission capabilities.

Feature Summary

• Engineered for high power and low resistance performance
• Flexible signal integration capabilities
• Right-angle male pin configuration with 2.54mm pitch

Applications

• High-power distribution systems
• Signal integration in electronic assemblies
• Harsh environment equipment requiring wide temperature tolerance

Procurement Notes

Verify the specific suffix HP against official Oupiin documentation to confirm exact mechanical dimensions and contact plating specifications. Ensure compatibility with wave soldering processes during design-in. Confirm that the 30A rating aligns with thermal management requirements for the target application. Cross-reference the part number with authorized distributors to validate authenticity and warranty terms.

Selection Notes

Select this connector when both high-current power handling and signal transmission are required in a single interface. The right-angle design aids in space-constrained PCB layouts. Consider the 2.54mm pitch for standard board spacing compatibility. Evaluate thermal dissipation needs given the 30A capacity and operating temperature range to ensure long-term reliability under load conditions.

Part Context

This component is part of the Oupiin 9391-A Series, which focuses on high-power and signal connectivity solutions. The series is characterized by its ability to handle significant current loads while maintaining signal integrity. It represents Oupiin's approach to combining power and signal functions in compact rectangular connector formats suitable for modern electronic manufacturing.

Replacement Considerations

No public confirmed substitute part numbers are identified in the provided documentation. Users should consult Oupiin directly for potential cross-references or alternative series members that match specific mechanical and electrical requirements.
