Product Detailed Parameters
- Description：Power Connector Female Straigh
- Series：9391
- Mfr：Oupiin
- Package：Tray
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board
- Number of Positions：10 (8 + 2 Power)
- Number of Positions Loaded：All
- Pitch - Mating：-
- Number of Rows：-
- Row Spacing - Mating：-
- Mounting Type：Through Hole
- Termination：Press-Fit
- Fastening Type：-
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：3.00µin (0.076µm)
- Insulation Color：Black
- Insulation Height：0.500" (12.70mm)
- Contact Length - Post：0.135" (3.43mm)
- Operating Temperature：-40°C ~ 105°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Tin
- Mated Stacking Heights：-
- Ingress Protection：-
- Features：Mating Guide
- Current Rating (Amps)：-
- Voltage Rating：-
Download product information
Overview

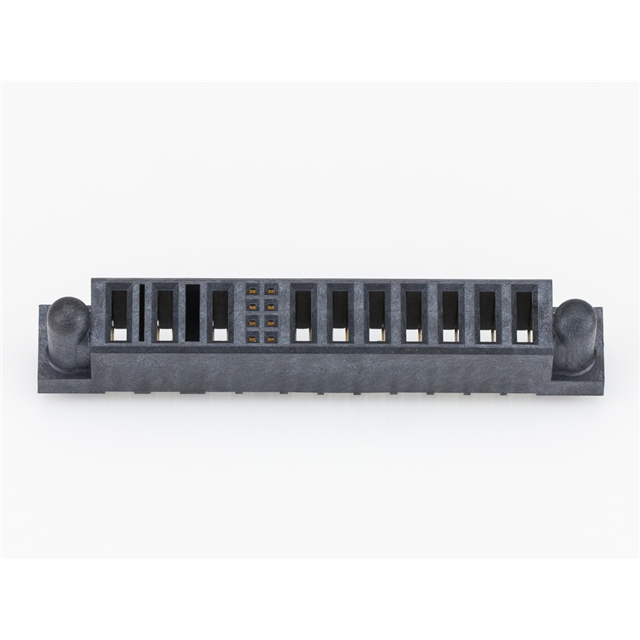

The Oupiin 9391-A2P02S08CB30PA is a high-power and signal connector from the PwrSword® series, designed for power and host-to-card interfaces. It utilizes an open blade contact design to minimize misalignment and enhance heat dissipation. The component supports both AC and DC power applications with a rated current of 30A per power contact and 2.5A per signal pin. It features low power contact resistance of 70mΩ to reduce thermal generation. The connector accommodates 2 to 12 power contacts and 8 to 40 signal contacts, offering flexible layout options for integrated PCB and busbar solutions.
Feature Summary
- Open blade design eliminates misalignment and improves heat dissipation
- Supports AC and DC power distribution with customizable layouts
- Integrates power and signal pins for enhanced design flexibility
- Low contact resistance minimizes heat generation during operation
Applications
- Power and host-to-card interface systems
- Customized power distribution solutions integrating PCB and busbar technology
- High-power electronic equipment requiring reliable signal integration
Procurement Notes
Verify the specific part number suffix against official Oupiin documentation to ensure correct configuration. Confirm RoHS compliance status and lead time requirements through authorized distributors. Ensure storage conditions adhere to the specified 18-month limit. Cross-reference technical parameters with system requirements before procurement to avoid compatibility issues.
Selection Notes
Select this connector when high current capacity up to 30A per pin is required alongside signal transmission. Consider the open blade design for applications needing robust alignment and thermal management. Evaluate the available contact counts (2-12 power, 8-40 signal) against board space constraints. Ensure the operating temperature range of -40°C to +105°C meets environmental demands.
Part Context
This component belongs to the Oupiin 9391-A Series PwrSword® connectors, engineered for high-power applications. The series offers low resistance and flexible signal integration capabilities. It is part of Oupiin's portfolio of industrial automation components, focusing on durable and efficient power distribution solutions for complex electronic systems.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Users should consult official Oupiin documentation or authorized distributors for compatible alternatives or cross-references.
