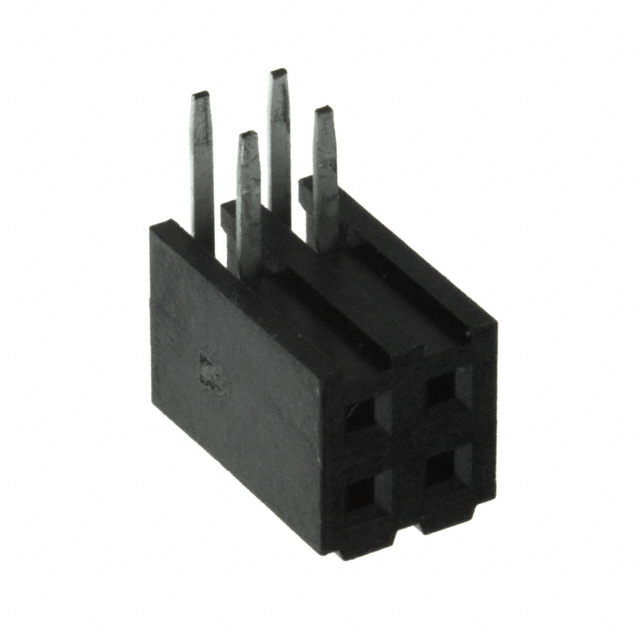

950404-5002-AR

950404-5002-AR is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists 3M. Its product description is CONN RCPT 4P 0.079 GOLD PCB R/A. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 950404-5002-AR

• Description：CONN RCPT 4P 0.079 GOLD PCB R/A
• Series：950
• Mfr：3M
• Package：Tube
• Connector Type：Receptacle
• Contact Type：Female Socket
• Style：Board to Board
• Number of Positions：4
• Number of Positions Loaded：All
• Pitch - Mating：0.079" (2.00mm)
• Number of Rows：2
• Row Spacing - Mating：0.079" (2.00mm)
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：Flash
• Insulation Color：Black
• Insulation Height：0.191" (4.85mm)
• Contact Length - Post：0.118" (3.00mm)
• Operating Temperature：-40°C ~ 105°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：-
• Current Rating (Amps)：1A
• Voltage Rating：1000VDC

Headers, Receptacles, Female Sockets datasheet and documents for 950404-5002-AR
