95293-102-03LF

Headers, Male Pins Overview

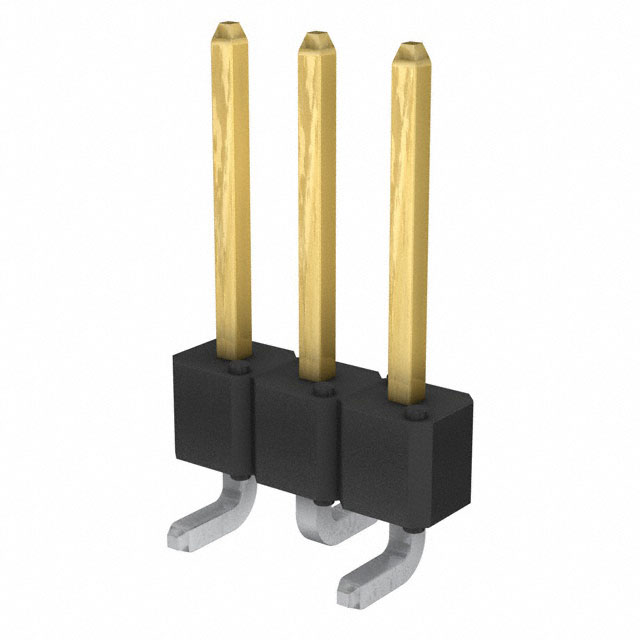

The Amphenol ICC (FCI) 95293-102-03LF is a BergStik unshrouded vertical header designed for board-to-board and mezzanine applications. It features a single row with three positions and a 2.54 mm pitch. The connector utilizes surface mount termination with gold-plated phosphor bronze contacts housed in thermoplastic insulation. Rated for 3 A current and 1.5 kV voltage, it operates within a temperature range of -65°C to +130°C.

Headers, Male Pins Feature Summary

• Unshrouded vertical design for compact board-to-board interconnects
• Gold-plated phosphor bronze contacts ensure reliable signal transmission
• Thermoplastic housing provides UL94 V-0 flame retardancy

Headers, Male Pins Applications

• Board-to-board connections
• Mezzanine circuit interconnects
• General electronic equipment internal wiring

Headers, Male Pins Procurement Notes

Verify the specific suffix against official datasheets to confirm pin count and orientation. Ensure compatibility with mating receptacles from the same series. Confirm RoHS compliance status and lead-free requirements prior to integration into final assemblies.

Headers, Male Pins Selection Notes

Select this component for low-profile vertical mounting needs requiring a standard 2.54 mm grid. Evaluate thermal management capabilities given the 130°C maximum operating limit. Consider the unshrouded nature for alignment precision during assembly processes.

Headers, Male Pins Part Context

This part belongs to the BergStik family of headers, characterized by high-density single-row configurations. It serves as a standard interconnect solution within Amphenol FCI's broader portfolio of board-to-board connectors, offering consistent mechanical and electrical performance across similar series variants.

Headers, Male Pins Replacement Considerations

Cross-reference with other 3-position, 2.54 mm pitch unshrouded headers from the same manufacturer. Verify that alternative parts match the exact height, contact plating thickness, and soldering profile requirements.
