95293-102-09LF

Headers, Male Pins Overview

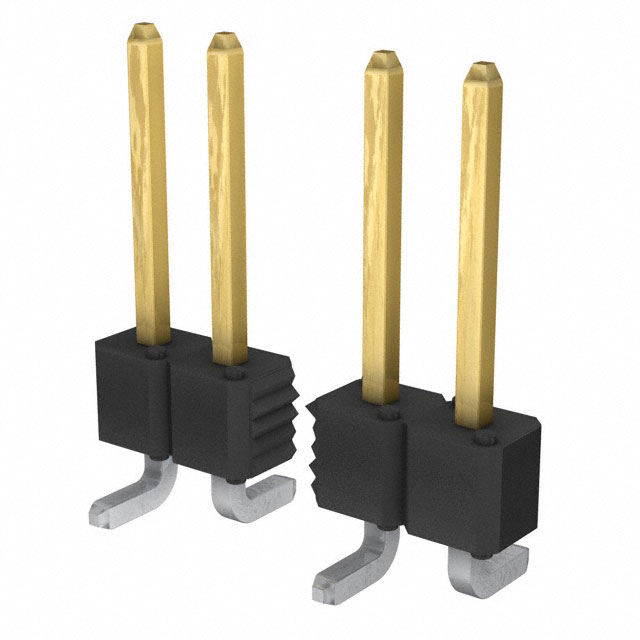

The Amphenol ICC (FCI) 95293-102-09LF is a single-row, unshrouded board-to-board header featuring 9 positions with a 2.54 mm pitch. Designed for surface mount technology, it utilizes gold-plated phosphor bronze contacts and a thermoplastic housing rated UL 94 V-0. The component supports a current rating of 3 A and withstands voltages up to 1.5 kV, operating within a temperature range of -65°C to +130°C.

Headers, Male Pins Feature Summary

• Single-row unshrouded design for compact vertical mounting
• Gold-plated phosphor bronze contacts ensure reliable signal transmission
• Thermoplastic housing provides UL 94 V-0 flame retardancy

Headers, Male Pins Applications

• Board-to-board interconnections
• Mezzanine circuit architectures
• High-density electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific suffix against official documentation to confirm exact pin count and length specifications. Ensure compatibility with surface mount reflow profiles and check RoHS compliance status through authorized channels before integration into production lines.

Headers, Male Pins Selection Notes

Select this component for applications requiring a single-row, 2.54 mm pitch header with vertical orientation. Consider the 3 A current rating and 1.5 kV insulation voltage when designing circuits. Verify that the unshrouded style aligns with mechanical constraints and mating connector requirements.

Headers, Male Pins Part Context

This part belongs to the BergStik family of connectors, which are widely used in industrial and commercial electronics. The series offers various position counts and lengths, providing standardized solutions for board-to-board connectivity needs across different product generations.

Headers, Male Pins Replacement Considerations

Consult official substitution lists for verified equivalents. Generic alternatives may not match the precise contact plating thickness or housing material properties required for original equipment specifications.
