Description：RF ANT 1.575GHZ MOD SMA MAGNT 5M
Series：-
Mfr：Adafruit Industries LLC
Package：Bulk

SKU:437d7d1d9791 Category: RF Antennas Brand: Adafruit Industries LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF ANT 1.575GHZ MOD SMA MAGNT 5M
Series：-
Mfr：Adafruit Industries LLC
Package：Bulk
RF Family/Standard：Navigation
Frequency Group：UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：1.575GHz
Frequency Range：1.574GHz ~ 1.576GHz
Antenna Type：Module
Number of Bands：1
VSWR：2
Return Loss：-
Gain：28dB
Features：Cable - 5m, LNA, Filter
Termination：SMA Male
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Magnetic
Height (Max)：0.524" (13.30mm)
Applications：GPS
Power - Max：-

Download product information

960

Overview

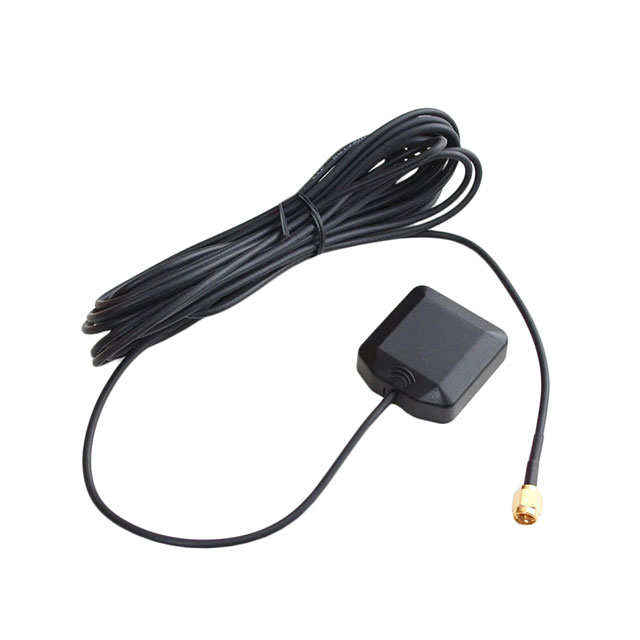

The Adafruit Industries LLC part number 960 is an RF antenna designed for GPS applications. It features a magnetic base for secure mounting and utilizes an SMA male connector for interfacing with compatible receiver modules. The unit operates within a voltage range of 3-5V and provides a gain of 28dB to ensure reliable signal reception. The cable length is specified as 5 meters, allowing for flexible placement relative to the host device.

Feature Summary

Magnetic base design for easy attachment to metallic surfaces
SMA male connector interface for standard compatibility
Optimized for GPS signal acquisition

Applications

GPS module integration
Navigation system prototyping
Vehicle tracking devices

Procurement Notes

Verify the specific datasheet requirements before procurement. Confirm that the host equipment supports the SMA male connector type and operates within the 3-5V range. Ensure the 5-meter cable length meets the physical layout constraints of the intended assembly. Cross-reference the manufacturer's documentation for any environmental or regulatory compliance details relevant to the deployment region.

Selection Notes

Select this component when a dedicated external antenna is required for GPS accuracy in mobile or stationary setups. The magnetic mount simplifies installation on metal chassis without additional hardware. Consider the 5-meter lead length for routing flexibility away from potential interference sources. This model is suitable for projects requiring robust signal capture over short-range wireless transmission limitations.
