98424-F52-16ALF

Headers, Male Pins Overview

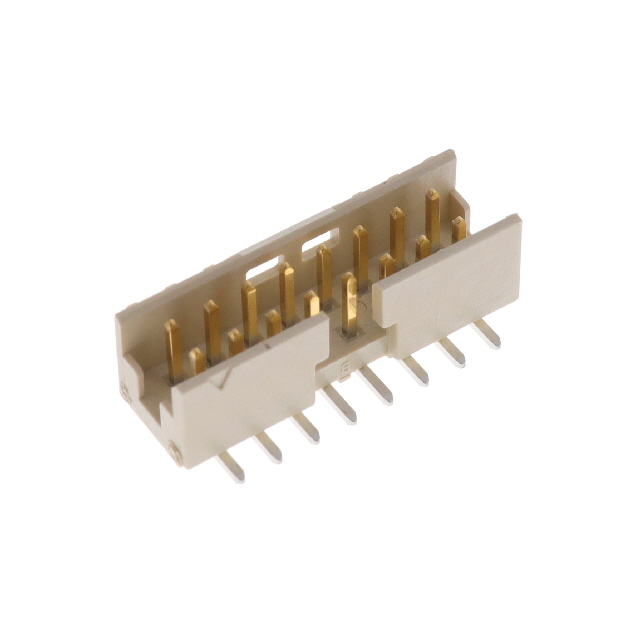

The Amphenol ICC (FCI) 98424-F52-16ALF is a Minitek® series board connector designed for surface mount technology. It features a 16-position, double-row header configuration with a 2.00mm pitch. The component utilizes male square pins with gold flash plating on the mating interface and matte tin termination. Rated for 2A current and 200V AC/DC, it includes a four-wall shroud and locking mechanism. The insulator is cream-colored thermoplastic compliant with UL94 V-0 standards.

Headers, Male Pins Feature Summary

• Surface mount installation with integrated locking latches for secure attachment
• Four-wall shrouded design providing alignment and protection for mating connections
• Gold flash contact plating ensures reliable signal transmission in low-signal applications

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board assemblies
• General electronic equipment requiring compact SMT headers

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm plating thickness and insulation color variations. Ensure the selected variant matches the required surface mount footprint and pin count. Confirm RoHS compliance status through official manufacturer documentation before finalizing procurement specifications.

Headers, Male Pins Selection Notes

Select this component for applications requiring a 2.00mm pitch double-row header with surface mount termination. Consider the 2A current rating and 200V voltage limit when designing circuit interfaces. Verify that the locking feature and shrouded housing meet mechanical stability requirements for the target assembly.

Headers, Male Pins Part Context

This part belongs to the Minitek® 2.00mm family of connectors manufactured by Amphenol ICC (FCI). The series offers various position counts and mounting styles, including through-hole and surface mount options. The 98424 base number indicates a standard shrouded header configuration within this product line.

Headers, Male Pins Replacement Considerations

Direct substitutes include other 98424 series variants with matching 16-position, double-row, SMT specifications. Verify compatibility regarding pitch, shrouding, and locking mechanisms when considering alternative part numbers from the same manufacturer.
