9FGV1008BQ500LTGI

Overview

The 9FGV1008BQ500LTGI is a programmable PhiClock generator manufactured by Renesas Electronics. It operates within a supply voltage range of 1.71 V to 3.465 V and supports output frequencies up to 325 MHz. The device features two differential outputs utilizing LP-HCSL or LVDS signaling standards. Packaged in a compact 16-pin LGA format, it functions reliably across an industrial temperature range from -40°C to +85°C. Designed for low power consumption with a typical operating current of 24 mA, this component integrates spread-spectrum capabilities to assist in electromagnetic interference reduction.

Feature Summary

• Programmable clock generation with support for spread-spectrum input
• Dual differential outputs supporting LP-HCSL and LVDS signaling

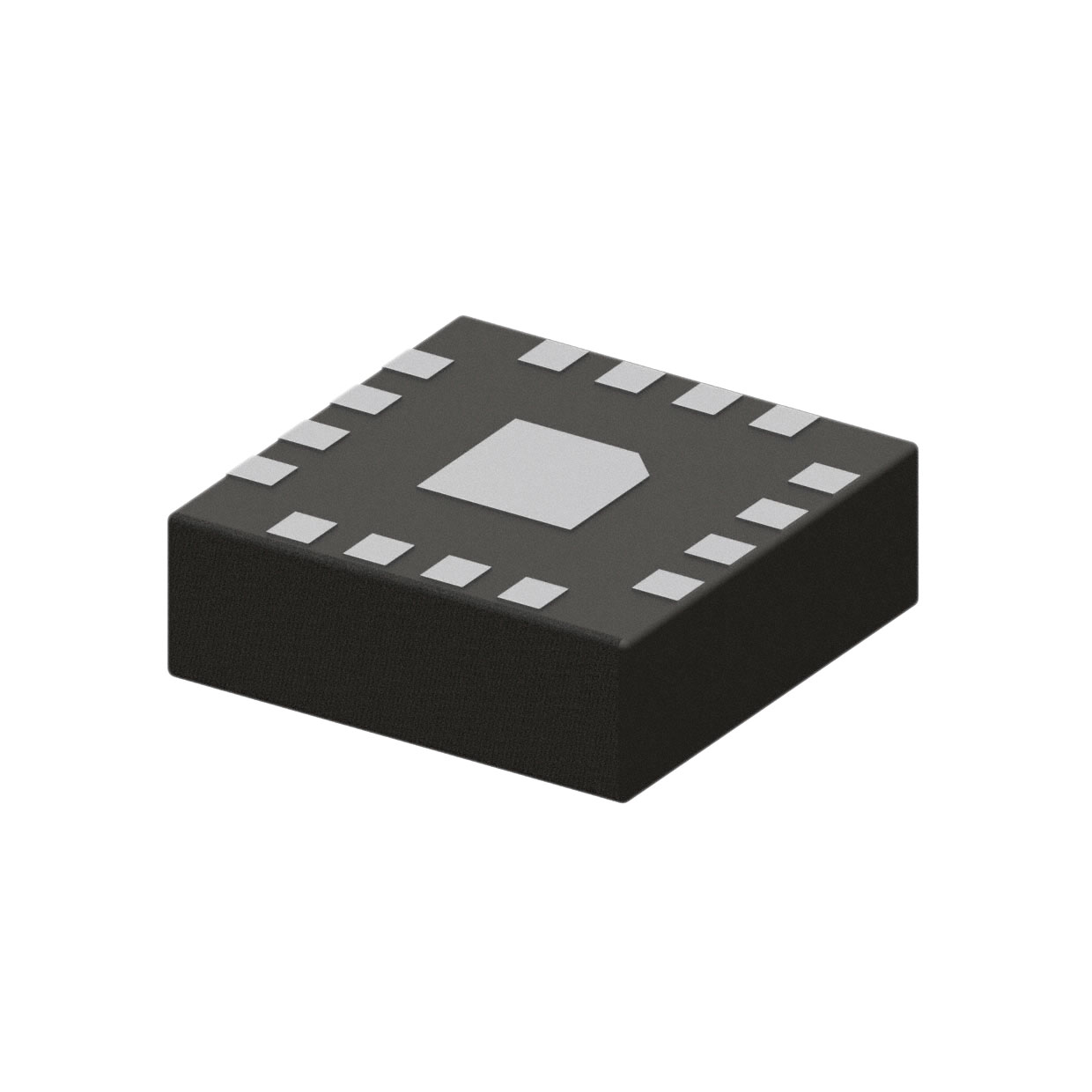

• Compact 16-LGA (3x3 mm) package with exposed pad
• Wide supply voltage compatibility from 1.71 V to 3.465 V

Applications

• PCI Express timing solutions
• SATA interface clocking
• Intel CPU server systems

Procurement Notes

Verify the specific suffix 'B' against official Renesas documentation to confirm pinout and configuration settings. Ensure the selected variant matches the required output frequency and signaling standard for the target application. Confirm RoHS compliance status prior to integration.

Selection Notes

Select this component when dual differential clock outputs are required for high-speed serial interfaces. Verify that the input crystal frequency aligns with the 50 MHz specification. Ensure the design accommodates the 16-LGA thermal requirements and I2C programming interface constraints.

Part Context

This part belongs to the 9FGV1005 series of programmable clock generators. It shares architectural similarities with other members like the 9FGV1005Q500LTGI but offers specific output configurations tailored for multi-lane serial bus applications. The PhiClock family emphasizes jitter performance and flexibility for system-level timing needs.

Replacement Considerations

Direct substitutes include other 9FGV1005 series variants such as 9FGV1005Q500LTGI, provided the output count and frequency specifications match the design requirements. Cross-referencing the datasheet for pin compatibility is essential before substitution.
