9H03200413

Crystals Overview

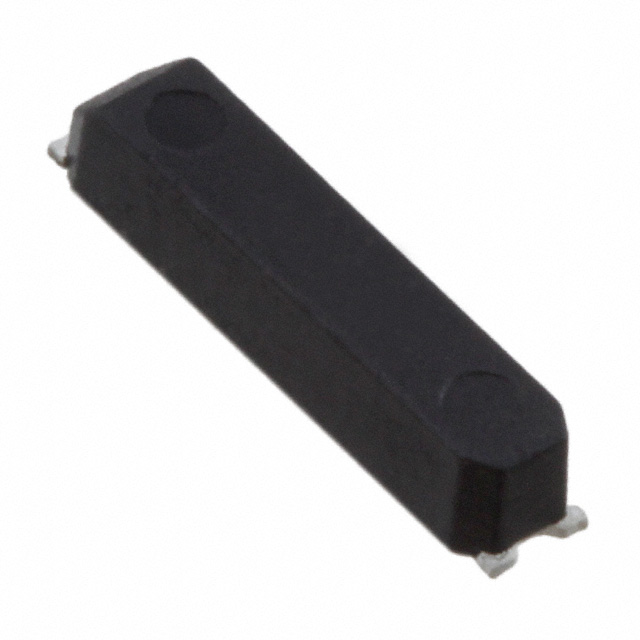

The 9H03200413 is a passive crystal oscillator manufactured by TXC Corporation. It operates at a nominal frequency of 32.768 kHz with a tolerance of ±20 ppm. The component features a load capacitance of 12.5 pF and a maximum equivalent series resistance (ESR) of 65 kOhms. It utilizes the T7 package configuration, which corresponds to a 4-SMD, flat lead form factor. The device is designed for surface-mount technology applications requiring precise timing references.

Crystals Feature Summary

• Provides stable frequency generation at 32.768 kHz for real-time clock applications
• Utilizes a compact 4-SMD flat lead package for space-constrained designs
• Maintains frequency accuracy within ±20 ppm tolerance limits

Crystals Applications

• Real-time clock circuits in consumer electronics
• Microcontroller system timing references
• Low-power embedded device synchronization

Crystals Procurement Notes

Verify the specific package variant against design requirements, as the T7 designation indicates a 4-SMD flat lead configuration. Confirm that the 12.5 pF load capacitance matches the target circuit's oscillator specifications. Ensure compatibility with surface-mount assembly processes. Check current availability status through authorized distributors, as supply conditions may vary.

Crystals Selection Notes

Select this component when a 32.768 kHz reference is required for timekeeping functions. The ±20 ppm tolerance suits general-purpose applications where high precision is not critical. The 12.5 pF load capacitance must align with the host oscillator circuit design. Consider the 4-SMD footprint constraints during PCB layout planning.

Crystals Part Context

This part belongs to TXC Corporation's passive crystal lineup, specifically optimized for low-frequency timing applications. The 32.768 kHz frequency is standard for binary division in digital clocks. The T7 package offers a balance between size and manufacturability for surface-mount production lines.

Crystals FAQ

What is the maximum ESR for the 9H03200413?

The maximum equivalent series resistance is 65 kOhms.

Does the 9H03200413 include an integrated oscillator circuit?

No, it is a passive crystal resonator that requires an external oscillator circuit.
