9HT10-32.768KDZF-T

Crystals Overview

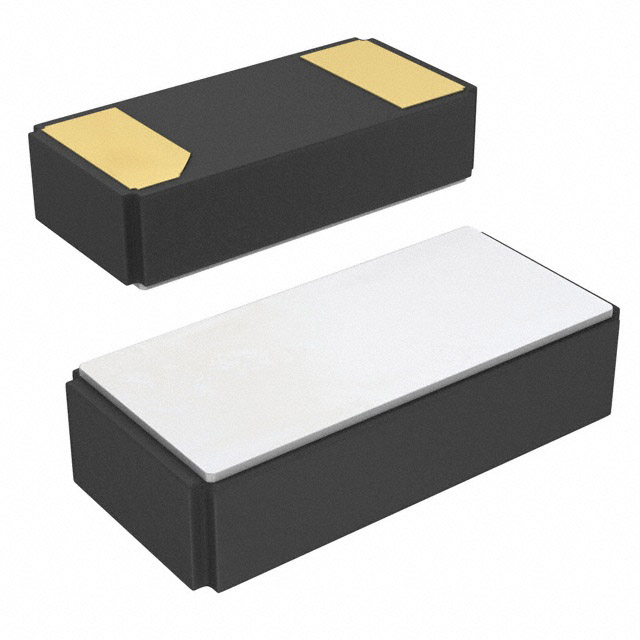

The TXC Corporation 9HT10-32.768KDZF-T is a surface-mount quartz crystal resonator operating at a fundamental frequency of 32.768 kHz. It features a load capacitance of 12.5 pF and a frequency tolerance of ±20 ppm. The component exhibits an equivalent series resistance (ESR) of 70 kOhms and operates within a temperature range of -40°C to +85°C. Its physical dimensions are 3.2 mm in length, 1.5 mm in width, and 0.75 mm in height, housed in a 2-SMD, no-lead package.

Crystals Feature Summary

• Surface-mount design for automated assembly
• Fundamental mode operation for precise timing
• RoHS compliant construction

Crystals Applications

• Real-time clock circuits
• Microcontroller system clocks
• Portable electronic devices requiring low power consumption

Crystals Procurement Notes

Verify the specific suffix 'KDZF' against the manufacturer's official part number guide to ensure correct tolerance and packaging specifications. Confirm that the required load capacitance matches the target circuit design. Check RoHS compliance status if environmental regulations apply to the final product assembly.

Crystals Selection Notes

Select this component when a standard 32.768 kHz reference is needed with moderate accuracy. The 12.5 pF load capacitance is common for many microcontroller interfaces. Ensure the PCB footprint accommodates the 3.2x1.5 mm outline and 0.75 mm maximum height constraints.

Crystals Part Context

This part belongs to the TXC 9HT10 series of thin-film quartz crystals. These components are designed for general-purpose timing applications where cost-effectiveness and reliability are prioritized over high-stability requirements found in TCXO or OCXO modules.

Crystals Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data.
