9LRS3165BGLF

Overview

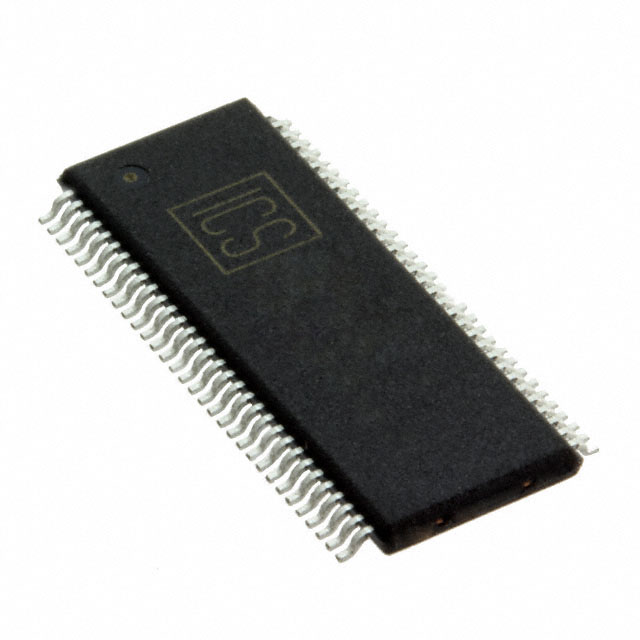

The 9LRS3165BGLF is a clock synthesizer and jitter cleaner designed for Intel CPU server applications. It features one circuit with a 1:21 input-to-output ratio, utilizing a crystal input to generate up to 400MHz clock outputs. The device operates on a supply voltage of 3.135V to 3.465V within an ambient temperature range of 0°C to 70°C. It is housed in a 64-TFSOP package (6.10mm width) and supports surface mount installation.

Feature Summary

• Designed specifically for Intel CPU server main clock generation
• Integrates PLL functionality for precise frequency synthesis
• Provides differential output capability alongside single-ended options
• Operates within standard industrial temperature limits

Applications

• Intel CPU server systems
• Main clock distribution networks
• High-performance computing platforms

Procurement Notes

Verify the specific ordering suffix against official Renesas documentation to confirm package dimensions and lead-free status. Confirm current availability as this component type may be subject to discontinuation notices or limited stock conditions from authorized distributors.

Selection Notes

Select this component when a dedicated clock generator for Intel architecture servers is required. Ensure the design accommodates the 64-pin TSSOP footprint and the specified 3.135V to 3.465V power rail requirements. Verify that the 0°C to 70°C operating range meets the environmental constraints of the target enclosure.

Part Context

This part belongs to the Renesas clock timing family, serving as a specialized solution for server infrastructure. It complements other clock generators by offering high fan-out capabilities suitable for complex motherboard layouts requiring multiple synchronized clock domains.

Replacement Considerations

Consult official Renesas cross-reference guides for verified substitutes. Generic clock synthesizers may not match the specific Intel compatibility or pinout configuration required for direct replacement.
