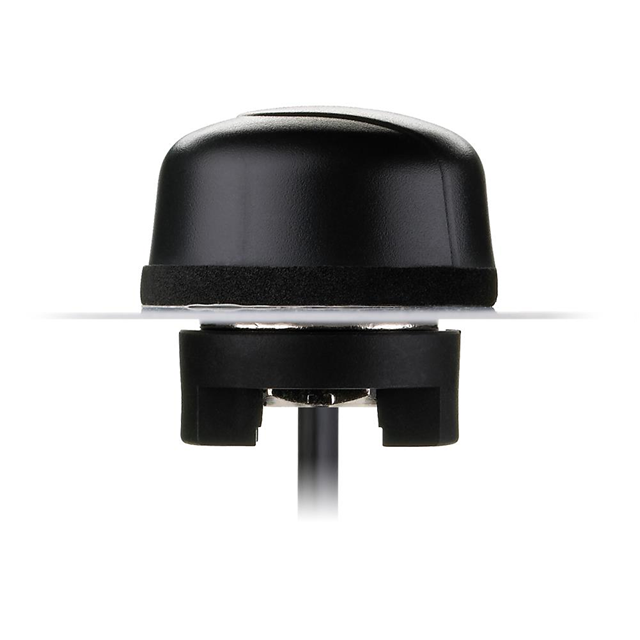

A.01.C.301111

$41.78

Description：RF ANT 1.575GHZ DOME CAB PAN MT
Series：Hercules
Mfr：Taoglas Limited
Package：Bag

SKU:a1f94c78e964 Category: RF Antennas Brand: Taoglas Limited

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF ANT 1.575GHZ DOME CAB PAN MT
Series：Hercules
Mfr：Taoglas Limited
Package：Bag
RF Family/Standard：Navigation
Frequency Group：UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：1.575GHz
Frequency Range：1.575GHz ~ 1.576GHz
Antenna Type：Dome
Number of Bands：1
VSWR：2
Return Loss：-
Gain：32dBic
Features：Cable - 3m, LNA, Filter
Termination：SMA Male
Ingress Protection：IP67, IP69K
Grade：-
Qualification：-
Mounting Type：Panel Mount
Height (Max)：1.142" (29.00mm)
Applications：GPS
Power - Max：-

Download product information

A.01.C.301111

Overview

The A.01.C.301111 is a Hercules GPS/GALILEO permanent mount active antenna by Taoglas Limited, designed for GNSS applications including GLONASS and Beidou. It operates at a center frequency of 1.57542 GHz with a minimum frequency of 1.574397 GHz. The unit features an SMA male connector, 50 Ohms impedance, and 30 dB gain. It includes a 3-meter RG-174 cable and measures 48x29mm.

Feature Summary

Supports multiple global navigation satellite systems including GPS, GALILEO, GLONASS, and Beidou
Active design with integrated low-noise amplifier for high sensitivity reception
Robust dome construction suitable for permanent vehicle or fixed installations

Applications

Vehicle tracking and telematics systems
Fleet management solutions
Precision agriculture equipment
Maritime navigation devices

Procurement Notes

Verify the specific firmware version and LNA bias requirements against your receiver datasheet before integration. Confirm that the 3-meter RG-174 cable length meets your system layout constraints. Ensure the SMA male connector polarity matches your host interface. Check current availability as stock levels may vary due to component lifecycle status.

Selection Notes

Select this model when a compact, permanently mounted active antenna is required for multi-constellation GNSS reception. It is appropriate for applications needing high gain and reliable performance in mobile or fixed environments. Consider the 3-meter cable length and RG-174 type for signal loss characteristics relative to your installation distance.

Part Context

This part belongs to the Hercules series of GNSS antennas from Taoglas. It is engineered for robust performance in challenging RF environments. The design focuses on providing stable positioning data for critical navigation applications across various industries requiring precise location services.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should consult Taoglas directly for equivalent models or updated components if this part reaches end-of-life status.
