A.120.A.101111

$120.52

Description：BOLT LOW PROFILE ACTIVE GNSS L1/
Series：-
Mfr：Taoglas Limited
Package：Bulk

SKU:a35924b43c9f Category: RF Antennas Brand: Taoglas Limited

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：BOLT LOW PROFILE ACTIVE GNSS L1/
Series：-
Mfr：Taoglas Limited
Package：Bulk
RF Family/Standard：Navigation
Frequency Group：Wide Band
Frequency (Center/Band)：1.176GHz, 1.201GHz, 1.227GHz, 1.248GHz, 1.268GHz, 1.278GHz, 1.542GHz, 1.561GHz, 1.575GHz, 1.602GHz
Frequency Range：-
Antenna Type：Dome
Number of Bands：10
VSWR：1.5
Return Loss：-
Gain：-1.5dBi, 0.5dBi, 1.8dBi, 1.2dBi, -0.1dBi, -1.5dBi, 2.6dBi, 4.2dBi, 4dBi, 2.7dBi
Features：Cable - 1m, LNA, Filter
Termination：SMA Male
Ingress Protection：IP67
Grade：-
Qualification：-
Mounting Type：Panel Mount
Height (Max)：1.024" (26.00mm)
Applications：BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS
Power - Max：-

Download product information

A.120.A.101111

Overview

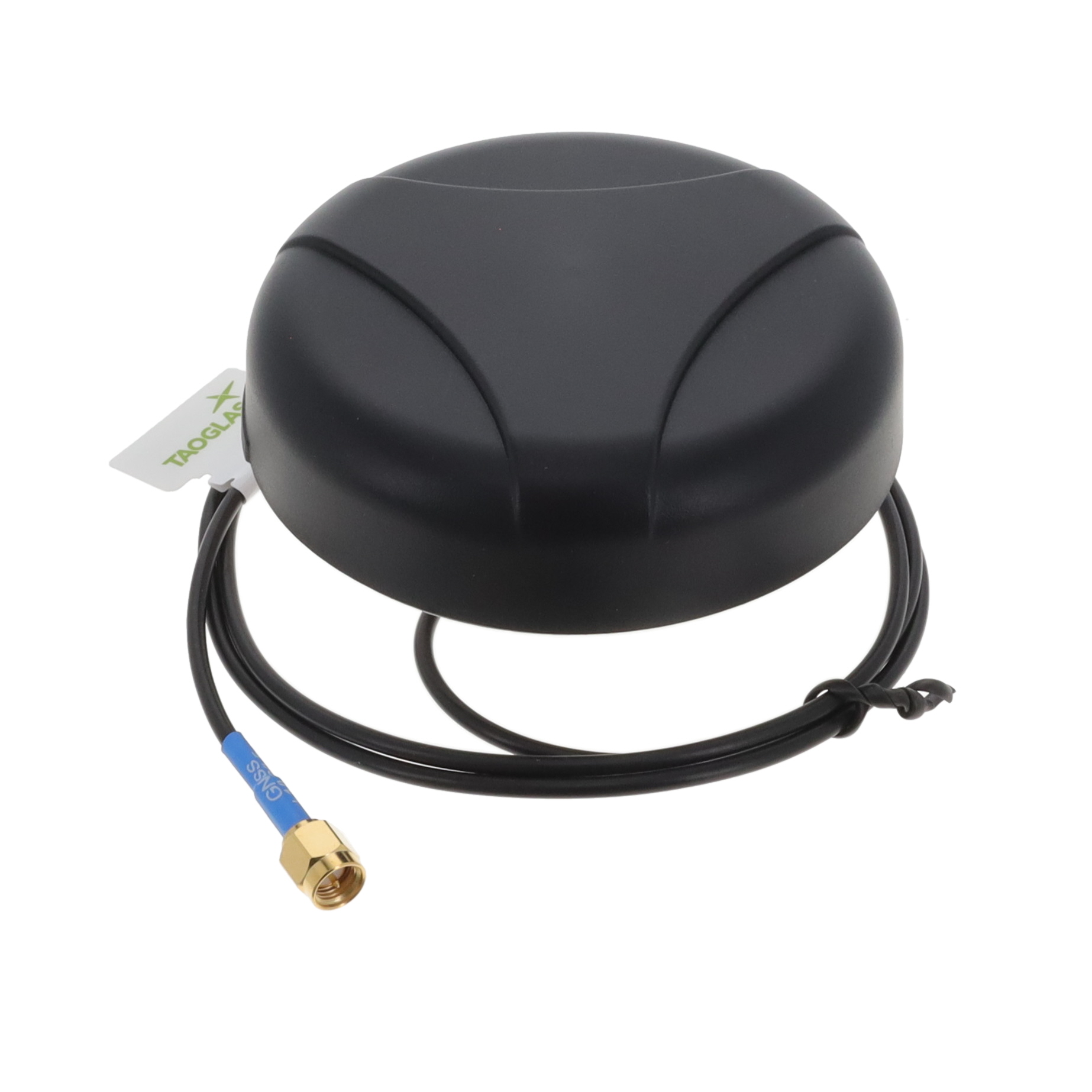

The A.120.A.101111 is an active all-band GNSS dome antenna designed for full spectrum coverage including GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS, and SBAS. It operates within the L-Band frequency range of 1.17645 GHz to 1.602 GHz with a gain of 2.7 dBi. The unit features SMA male panel mounting and achieves an IP67 rating for environmental protection. Maximum operating temperature is +85°C, with a height of 26 mm and 50 Ohm impedance.

Feature Summary

Active multi-band design supporting full GNSS spectrum
IP67 rated weatherproof enclosure
SMA male connector for panel installation

Applications

Permanent vehicle tracking systems
Maritime navigation equipment
Aviation positioning devices

Procurement Notes

Verify that the specific part number matches the active version required for your design. Confirm interface compatibility with existing SMA connectors. Ensure mechanical clearance allows for the 26 mm height dimension. Check environmental ratings against operational conditions.

Selection Notes

Select this component when permanent mounting is required rather than portable solutions. Consider the active nature of the antenna for low signal environments. Evaluate the SMA interface against system integration needs. Verify space constraints accommodate the dome shape.

Part Context

This model belongs to the Taoglas Bolt A.120 series of active GNSS antennas. It provides comprehensive satellite signal reception across multiple global navigation systems. The design prioritizes reliability and stability for critical positioning applications.
