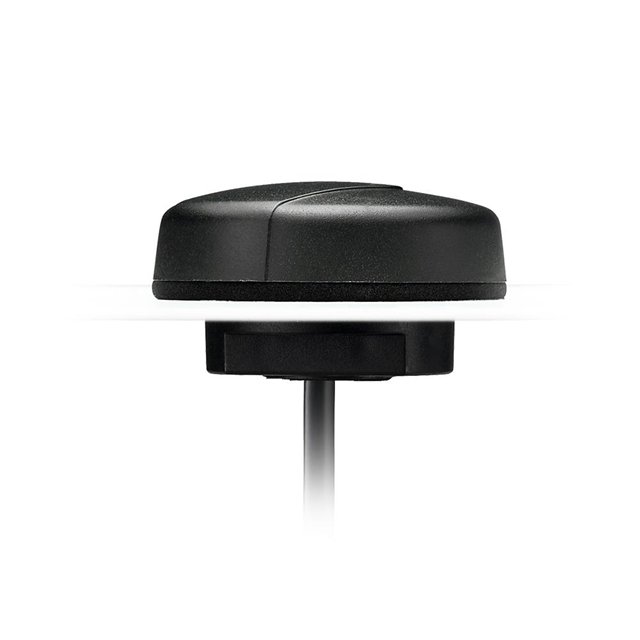

A.30.A.301111

$36.56

Description：RF ANT 1.575/1.602GHZ DOME PANEL
Series：Ultima
Mfr：Taoglas Limited
Package：Bag

SKU:155ef733d9d3 Category: RF Antennas Brand: Taoglas Limited

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF ANT 1.575/1.602GHZ DOME PANEL
Series：Ultima
Mfr：Taoglas Limited
Package：Bag
RF Family/Standard：Navigation
Frequency Group：UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：1.575GHz, 1.602GHz
Frequency Range：1.574GHz ~ 1.606GHz
Antenna Type：Dome
Number of Bands：2
VSWR：2
Return Loss：-
Gain：-1.4dB, -1.3dBi
Features：Cable - 3m
Termination：SMA Male
Ingress Protection：IP67, IP69K
Grade：-
Qualification：-
Mounting Type：Panel Mount
Height (Max)：0.772" (19.60mm)
Applications：GLONASS, GPS
Power - Max：-

Download product information

A.30.A.301111

Overview

The A.30.A.301111 is a dome-style GNSS antenna manufactured by Taoglas Limited, designed for global navigation satellite systems including GPS and GLONASS. It operates within the frequency range of 1.574 GHz to 1.606 GHz. The component features a panel mount installation method with an SMA male connector interface. Technical specifications include a voltage standing wave ratio (VSWR) of 2 and a gain ranging from -1.4 dB to -1.3 dBi. The unit supports an operating temperature range of -40°C to +85°C and has a noise figure of 1.3 dB.

Feature Summary

Dome form factor suitable for vehicle integration
Supports multi-constellation GNSS signals
Panel mount configuration for secure attachment

Applications

GPS tracking devices
GLONASS navigation modules
Vehicle telematics systems

Procurement Notes

Verify the specific datasheet version for the A.30.A.301111 to confirm current manufacturing status and any recent design changes. Ensure compatibility with existing SMA male connectors in the assembly. Check RoHS compliance documentation if required for specific regional regulations. Confirm that the panel mount dimensions align with the target enclosure design before finalizing procurement.

Selection Notes

Select this model when a low-profile dome antenna is required for GPS and GLONASS applications. The SMA male interface simplifies connection to standard RF cables. Consider the -40°C to +85°C operating range for automotive or outdoor environments. Verify that the -1.4 dB gain meets the system link budget requirements for the intended application scenario.

Part Context

This part belongs to the Taoglas GNSS antenna portfolio, specifically categorized under vehicle antennas. It complements other dome-style solutions like the AA.160 series but differs in mounting type and frequency band coverage. The A.30.A.301111 is distinct from flat bar antennas such as the GSA.8821 series, offering a specialized form factor for integrated vehicle installations rather than external surface mounting.
