A.90.A.101111

$106.22

Description：BOLT A.90 GPS / GLONASS / GALILE
Series：-
Mfr：Taoglas Limited
Package：Tape & Reel (TR),Bag

SKU:0e4e78e4ed07 Category: RF Antennas Brand: Taoglas Limited

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：BOLT A.90 GPS / GLONASS / GALILE
Series：-
Mfr：Taoglas Limited
Package：Tape & Reel (TR),Bag
RF Family/Standard：Navigation
Frequency Group：UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：1.575GHz, 1.602GHz
Frequency Range：-
Antenna Type：Dome
Number of Bands：2
VSWR：2
Return Loss：-10dB
Gain：3.59dBi, 4.05dBi
Features：Cable - 1m, LNA
Termination：SMA Male
Ingress Protection：IP67
Grade：-
Qualification：-
Mounting Type：Panel Mount
Height (Max)：1.000" (25.40mm)
Applications：GLONASS, GNSS, GPS
Power - Max：-

Download product information

A.90.A.101111

Overview

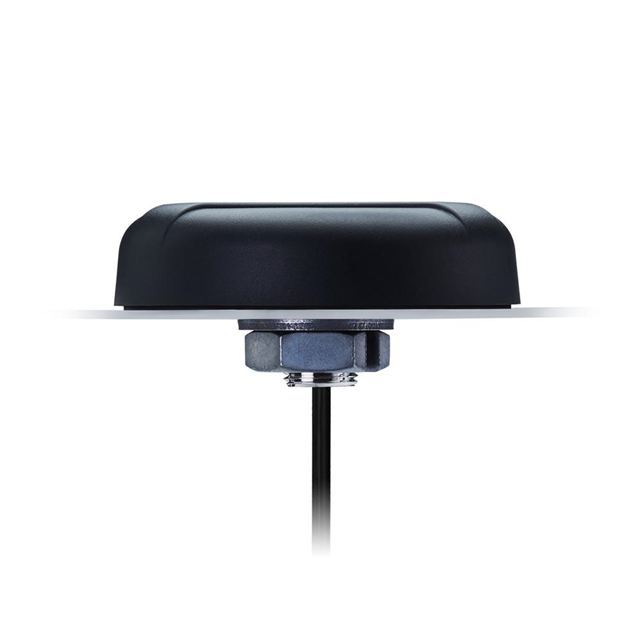

The A.90.A.101111 is a low-profile GNSS L1 GPS antenna manufactured by Taoglas Limited, designed for permanent mounting applications. It supports GPS, GLONASS, and Galileo satellite navigation systems. The component features an SMA male connector for panel mount installation. Physical dimensions are specified as 94.3mm in diameter and 25.4mm in height. This part is currently obsolete and no longer in active manufacturing.

Feature Summary

Supports multi-constellation GNSS including GPS, GLONASS, and Galileo
Low profile design suitable for space-constrained installations
Permanent bolt-mount configuration with integrated base

Applications

GPS receiver integration
GLONASS positioning systems
Galileo navigation modules
Permanent outdoor mounting setups

Procurement Notes

This component is officially classified as obsolete and is no longer manufactured by Taoglas Limited. Procurement should focus on verified surplus stock or authorized distributors holding remaining inventory. Buyers must confirm the specific revision and physical condition of available units, as lead times and availability vary significantly across secondary markets. Cross-referencing datasheets is essential to ensure compatibility with existing designs.

Selection Notes

Engineers selecting this antenna should prioritize its low-profile form factor and permanent mounting capabilities for fixed installations. The SMA male interface requires compatible cabling and connectors. Due to its obsolete status, alternative solutions with similar frequency coverage and mechanical constraints should be evaluated for long-term supply chain stability and updated performance specifications.

Part Context

The A.90.A.101111 belongs to the Bolt A.90 series of GNSS antennas from Taoglas Limited. This series is characterized by robust construction for permanent outdoor use. The model specifically targets L1 band frequencies for global navigation satellite systems. Its design emphasizes durability and consistent signal reception in stationary applications.
