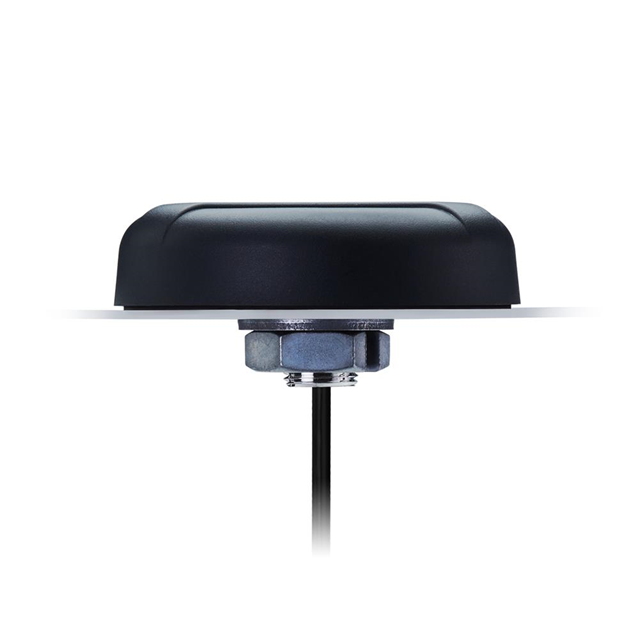

A.93.A.101111

$141.84

Description：BOLT - LOW PROFILE HIGH RF IMMUN
Series：-
Mfr：Taoglas Limited
Package：Bag

SKU:4a4530066ed9 Category: RF Antennas Brand: Taoglas Limited

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：BOLT - LOW PROFILE HIGH RF IMMUN
Series：-
Mfr：Taoglas Limited
Package：Bag
RF Family/Standard：Navigation
Frequency Group：UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：1.561GHz, 1.575GHz, 1.602GHz
Frequency Range：-
Antenna Type：Dome
Number of Bands：3
VSWR：-
Return Loss：-
Gain：4.49dBi, 4.84dBi, 5.09dBi
Features：Cable - 1m, LNA
Termination：SMA Male
Ingress Protection：IP67
Grade：-
Qualification：-
Mounting Type：Panel Mount
Height (Max)：1.000" (25.40mm)
Applications：GPS
Power - Max：-

Download product information

A.93.A.101111

Overview

The A.93.A.101111 is a high-gain, permanent mount timing antenna manufactured by Taoglas Limited. It operates at a frequency of 1.602GHz and provides a gain of 5.09dBi with a 50-ohm impedance. The unit features an SMA male connector and includes a 1-meter cable with an integrated Low Noise Amplifier (LNA). Designed for panel mounting, it achieves an IP67 ingress protection rating and incorporates lightning-induced surge protection. The antenna supports GPS, GLONASS, Galileo, BeiDou, cellular, WiFi, and Bluetooth applications.

Feature Summary

Integrated low noise amplifier for signal enhancement
Lightning-induced surge protection included
IP67 rated environmental sealing

Applications

GPS timing systems
GLONASS navigation
Galileo positioning
BeiDou tracking

Procurement Notes

Verify the specific configuration details against the official Taoglas datasheet before procurement. Confirm that the required cable length and connector type match the system design requirements. Ensure the panel mounting interface is compatible with the installation environment. Check for any specific handling instructions related to the integrated LNA and surge protection components during storage and assembly.

Selection Notes

Select this model when high RF immunity and precise timing are critical for GNSS applications. The integrated LNA and surge protection make it suitable for harsh environments where signal integrity and hardware safety are priorities. Consider the fixed 1-meter cable length and SMA male termination when designing the RF chain layout.

Part Context

This component belongs to the Taoglas Bolt A.93 series of permanent mount antennas. It is designed for robust outdoor or industrial installations requiring reliable satellite navigation signals. The series emphasizes durability through high ingress protection ratings and built-in electrical protection mechanisms.
