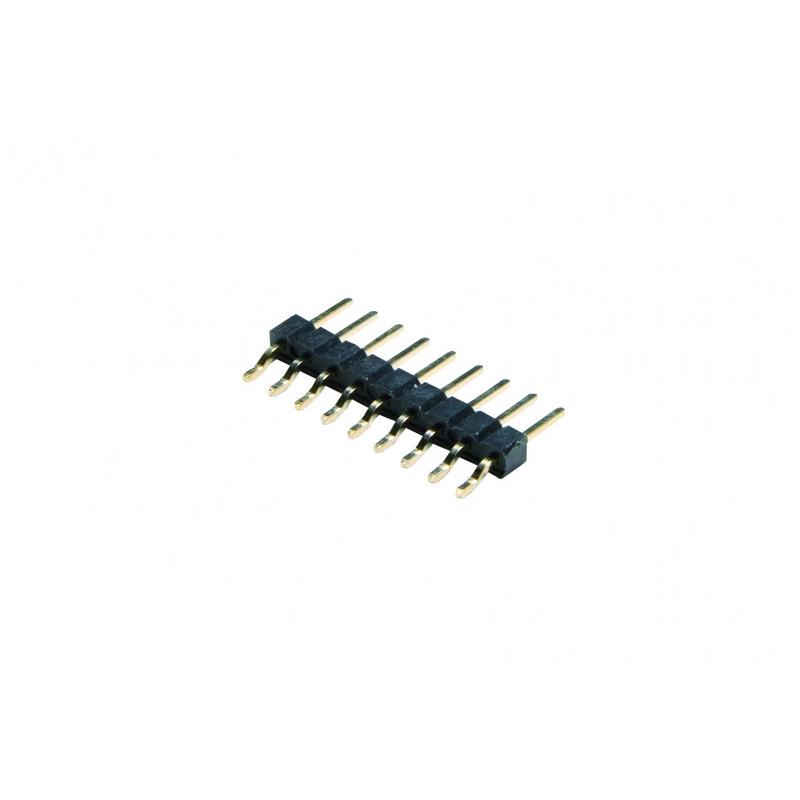

A-SL254EA13-058-GSR1

A-SL254EA13-058-GSR1 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Assmann WSW Components. Its product description is PIN HEADER, 5.84/X,XXMM, 2,54MM,. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for A-SL254EA13-058-GSR1

• Description：PIN HEADER, 5.84/X,XXMM, 2,54MM,
• Series：A-SL254
• Mfr：Assmann WSW Components
• Package：Tape & Reel (TR)
• Connector Type：Header, Cuttable
• Contact Type：Male Pin
• Pitch - Mating：0.100" (2.54mm)
• Number of Positions：13
• Number of Rows：1
• Row Spacing - Mating：-
• Number of Positions Loaded：All
• Style：Board to Board
• Shrouding：Unshrouded
• Mounting Type：Surface Mount, Right Angle
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：0.230" (5.84mm)
• Contact Length - Post：-
• Overall Contact Length：-
• Insulation Height：0.136" (3.46mm)
• Contact Shape：Square
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：Flash
• Contact Finish - Post：Gold
• Contact Material：Brass
• Insulation Material：Polyamide (PA6T), Nylon 6T, Glass Filled
• Features：Board Guide, Pick and Place
• Operating Temperature：-55°C ~ 105°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：3A
• Voltage Rating：-

Headers, Male Pins datasheet and documents for A-SL254EA13-058-GSR1
