A-WBP-D005EG-14SR01

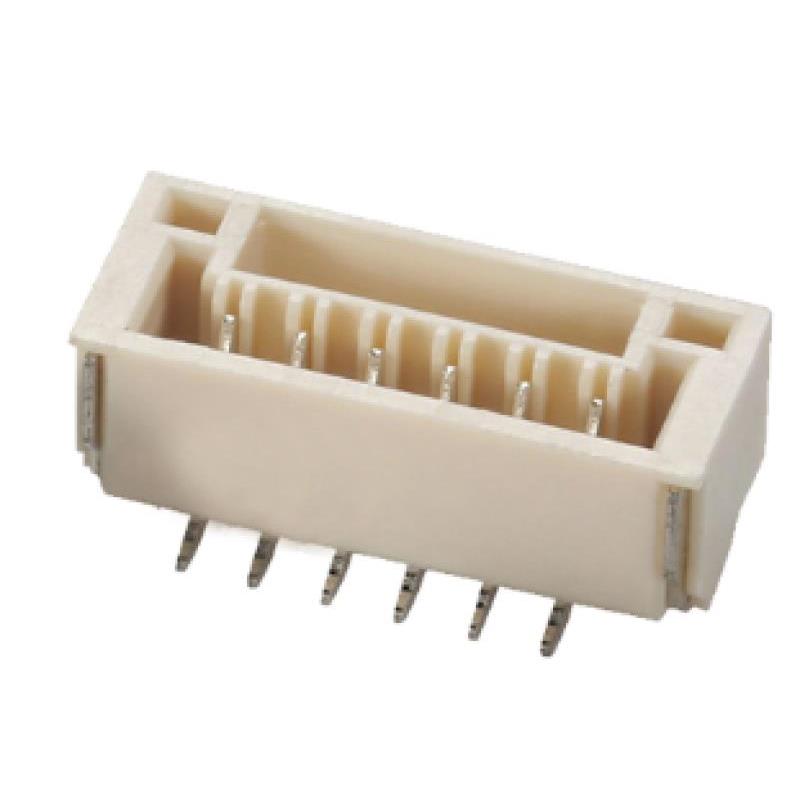

A-WBP-D005EG-14SR01 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Assmann WSW Components. Its product description is WIRE-TO-BOARD, WAFER, 1.25MM, 14. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for A-WBP-D005EG-14SR01

• Description：WIRE-TO-BOARD, WAFER, 1.25MM, 14
• Series：A-WBP
• Mfr：Assmann WSW Components
• Package：Tape & Reel (TR)
• Connector Type：Header
• Contact Type：Outer Shroud Contact
• Pitch - Mating：0.049" (1.25mm)
• Number of Positions：14
• Number of Rows：1
• Row Spacing - Mating：-
• Number of Positions Loaded：All
• Style：Board to Board
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Locking Ramp
• Contact Length - Mating：-
• Contact Length - Post：-
• Overall Contact Length：-
• Insulation Height：0.159" (4.05mm)
• Contact Shape：Square
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：-
• Contact Finish - Post：Tin
• Contact Material：Brass
• Insulation Material：Polyamide (PA9T), Nylon 9T
• Features：Solder Retention
• Operating Temperature：-40°C ~ 105°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Ivory
• Current Rating (Amps)：1A
• Voltage Rating：50VAC/DC
