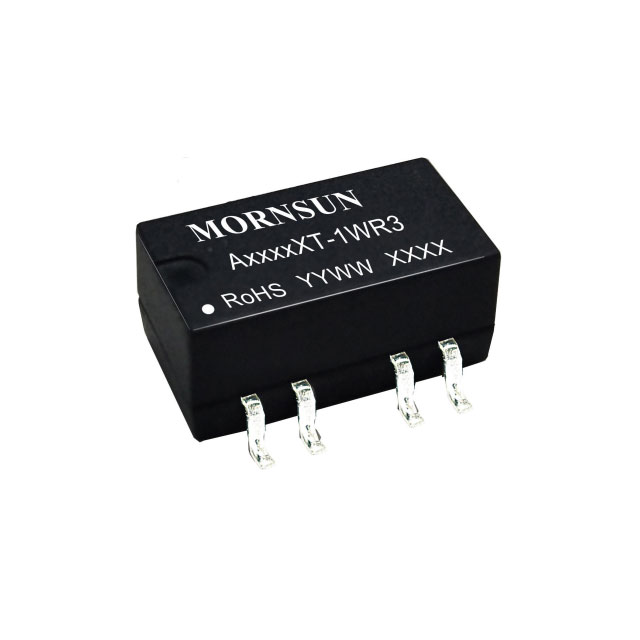

A0312XT-1WR3

A0312XT-1WR3 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Mornsun America, LLC. Its product description is DC DC CONVERTER +/-12V 1W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for A0312XT-1WR3

• Description：DC DC CONVERTER +/-12V 1W
• Series：A03_XT-1WR3 (1W)
• Mfr：Mornsun America, LLC
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：2.97V
• Voltage - Input (Max)：3.63V
• Voltage - Output 1：12V
• Voltage - Output 2：-12V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：42mA, 42mA
• Power (Watts)：1 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：82%
• Mounting Type：Surface Mount
• Package / Case：10-SMD Module, 6 Leads
• Size / Dimension：0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for A0312XT-1WR3
