Product Detailed Parameters
- Description：AUTOMOTIVE WI-FI 6 & WI-FI 6E ST
- Series：A
- Mfr：KYOCERA AVX
- Package：Tape & Reel (TR),Cut Tape (CT)
- RF Family/Standard：802.15.4, Bluetooth, WiFi
- Frequency Group：Wide Band
- Frequency (Center/Band)：2.4425GHz, 3.55GHz, 5.4875GHz, 6.525GHz
- Frequency Range：2.4GHz ~ 2.485GHz, 3.3GHz ~ 3.8GHz, 5.15GHz ~ 5.825GHz, 5.925GHz ~ 7.125GHz
- Antenna Type：Stamped Metal
- Number of Bands：4
- VSWR：2, 2.2
- Return Loss：-
- Gain：1.7dBi, 4.21dBi, 4.1dBi, 3.8dBi
- Features：-
- Termination：Solder
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：0.169" (4.30mm)
- Applications：Bluetooth, Wi-Fi, Wi-Fi 6, Wi-Fi 6E, WLAN, ZigBee
- Power - Max：0.5 W
Download product information
Overview

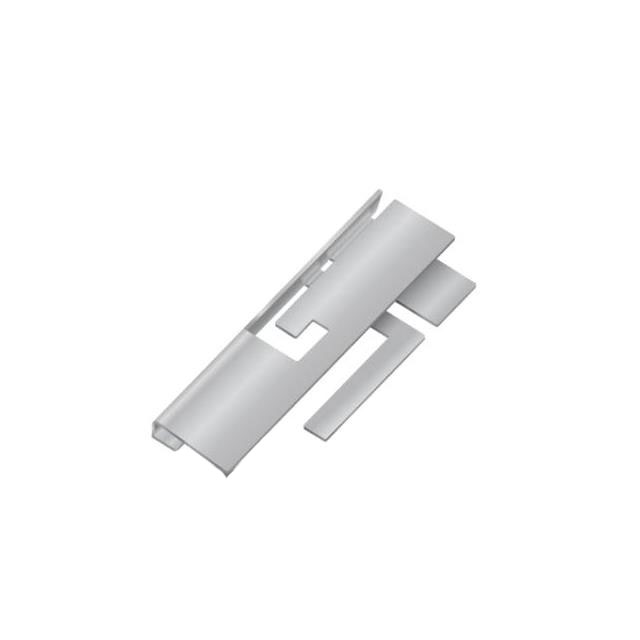

The KYOCERA AVX A1000146 is an automotive-grade stamped metal RF antenna designed for high-frequency wireless communication protocols. It supports Bluetooth, Wi-Fi, WLAN, and Zigbee applications across multiple frequency bands including 2.4GHz, 4.9GHz, 5.2GHz, and 5.8GHz. The component features a surface mount solder termination and operates within a temperature range of -40°C to +85°C. Key electrical specifications include a maximum VSWR of 2.0 and gain values ranging from 2.5dBi to 3.5dBi depending on the band. The physical dimensions are 12.7mm x 12.7mm with a height of 1.6mm.
Feature Summary
- Automotive-grade reliability meeting rigorous environmental standards
- Multi-band support for Bluetooth, Wi-Fi, WLAN, and Zigbee
- Stamped metal construction for consistent radiation patterns
- Surface mount design for automated assembly integration
Applications
- Automotive infotainment systems
- Vehicle connectivity modules
- In-car Wi-Fi access points
- Bluetooth hands-free kits
- Zigbee-based vehicle sensor networks
Procurement Notes
Verify that the specific order includes the automotive qualification certification required for your application. Confirm the package type matches your PCB footprint requirements. Ensure the supplier provides traceability documentation for automotive grade components. Check for any specific handling instructions related to the stamped metal structure during assembly.
Selection Notes
Select this component when designing for automotive environments requiring multi-protocol wireless support. Consider the stamped metal form factor for space-constrained installations. Evaluate the VSWR performance against your system's impedance matching network. Verify compatibility with the target frequency bands for your specific regional regulations.
Part Context
This part belongs to the KYOCERA AVX A-Series, which focuses on automotive wireless solutions. The series emphasizes durability and performance in harsh vehicular environments. It complements other passive components used in modern connected car architectures.
Replacement Considerations
No direct public substitute part numbers are confirmed for this specific automotive variant. Alternative antennas may require redesigning the RF matching network due to differences in physical dimensions or electrical characteristics.
