A1001013

Overview

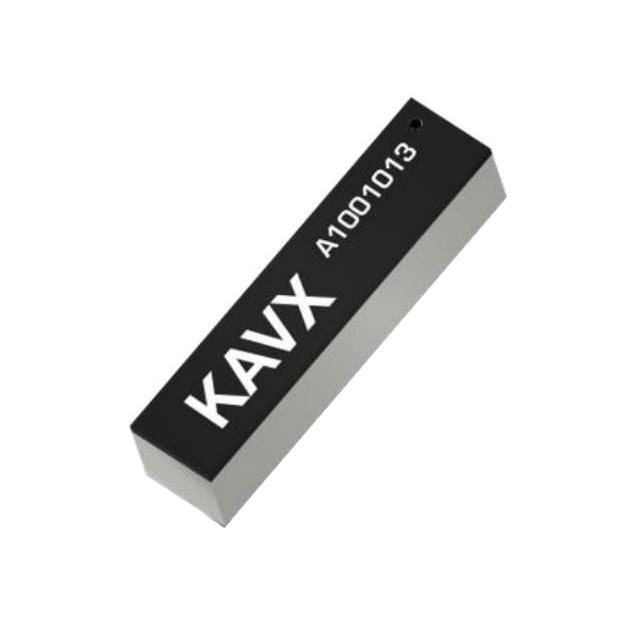

The A1001013 is a surface-mount RF antenna manufactured by KYOCERA AVX, designed for automotive applications. It operates within the 2.4 GHz to 2.485 GHz frequency range, supporting Wi-Fi and Bluetooth protocols. The component features a linear polarization type with a gain of 2.6 dBi. It utilizes an on/off ground configuration suitable for PCB integration in vehicle infotainment and safety systems.

Feature Summary

• Supports simultaneous Wi-Fi and Bluetooth communication protocols
• Designed for automotive environments with on/off ground functionality
• Surface mount package for direct PCB integration

Applications

• Automotive driving and safety equipment
• Vehicle infotainment systems
• On-board wireless connectivity modules

Procurement Notes

Verify the specific datasheet version and RoHS compliance status before procurement. Confirm that the on/off ground requirement aligns with the target PCB layout design. Ensure the operating temperature range meets the specific automotive application standards. Cross-reference the manufacturer part number with authorized distributors to avoid counterfeit components.

Selection Notes

Select this component when designing for automotive Wi-Fi or Bluetooth connectivity requiring a compact surface-mount solution. The 2.6 dBi gain provides adequate performance for short-range vehicle communications. Consider the physical dimensions and mounting orientation during the PCB layout phase to ensure optimal signal radiation patterns.

Part Context

This antenna belongs to the KYOCERA AVX portfolio of RF components tailored for the automotive sector. It addresses the increasing demand for reliable wireless connectivity in modern vehicles. The product supports the integration of advanced driver assistance systems and infotainment features through standardized wireless protocols.

Replacement Considerations

No public confirmed substitute part numbers are available.
