A1004796

Overview

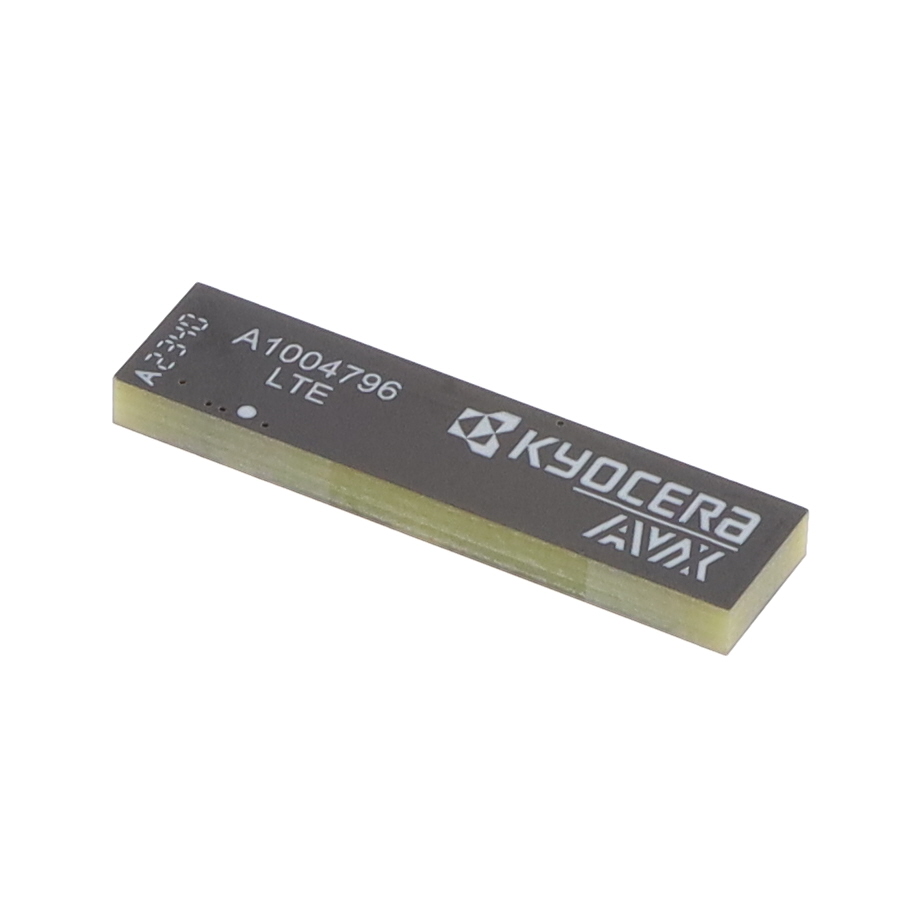

The KYOCERA AVX A1004796 is a broadband chip RF antenna designed for surface mount integration. It supports multiple frequency bands including 600MHz, 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, and 2.7GHz. The component covers LTE, LoRa, LPWAN, and Sigfox applications with gains ranging from 1.5dBi to 3.1dBi. It features a maximum power handling of 2W and VSWR values of 2.5 and 3. The unit measures 0.126 inches (3.20mm) in height and utilizes solder termination.

Feature Summary

• Broadband coverage supporting diverse cellular and IoT protocols
• Compact surface mount design for space-constrained PCBs
• High reliability construction aligned with automotive standards

Applications

• LTE communication modules
• LoRa and LPWAN devices
• Sigfox network equipment
• Automotive telematics systems

Procurement Notes

Verify the specific datasheet version for the A1004796 to confirm exact gain and VSWR tolerances for your target frequency band. Ensure the PCB layout matches the recommended ground plane specifications provided in the official documentation to maintain optimal radiation efficiency and impedance matching.

Selection Notes

Select this component when a single antenna solution must cover multiple disparate frequency bands without requiring complex tuning networks. It is suitable for designs prioritizing low profile and robust performance across wide bandwidths in both consumer and industrial wireless applications.

Part Context

This part belongs to the KYOCERA AVX portfolio of RF antennas, which provides integrated solutions for wireless connectivity. The manufacturer specializes in components that facilitate reliable signal transmission in mobile and fixed wireless infrastructure, ensuring compatibility with modern communication standards.

Replacement Considerations

The KYOCERA AVX 1004795 is documented as a parameter-equivalent substitute. Verify mechanical footprint and electrical characteristics against the primary datasheet before substitution.
