A12106DL

Overview

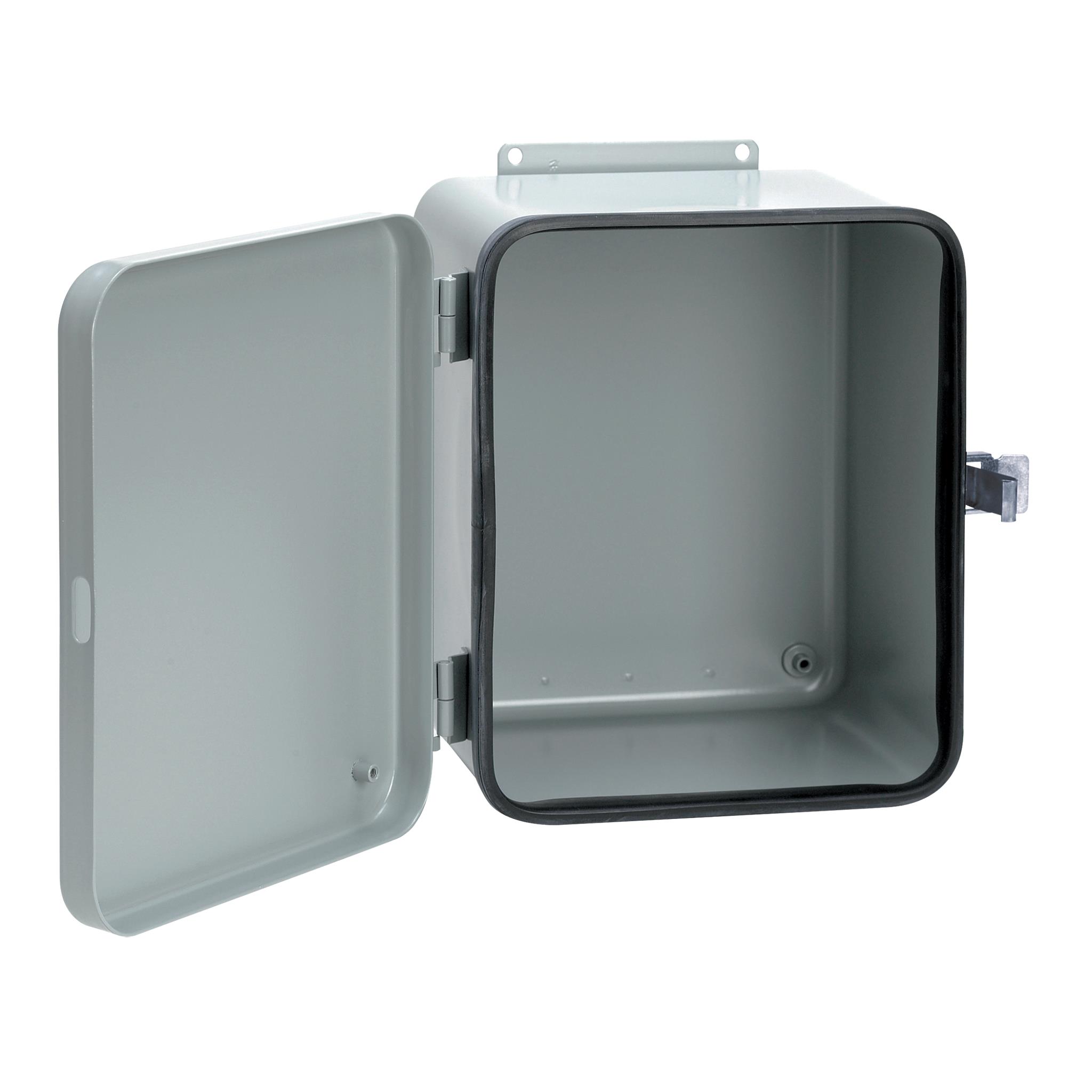

The Hoffman A12106DL is a Type 12 hinged cover junction box constructed from mild steel with a polyester powder painted finish in ANSI 61 Gray. It features a contoured design with dimensions of 12 inches in height, 10 inches in width, and 6 inches in depth. The enclosure utilizes a removable hinge mechanism with quick-release latches for secure access. It meets UL 508A standards and provides protection against dust, dripping non-corrosive liquids, and oil seepage.

Feature Summary

• Constructed from mild steel with a durable polyester powder painted finish
• Features a unique removable hinge design allowing the door to be lifted off
• Equipped with quick-release latches for rapid and secure closure
• Designed with rounded corners and no welded seams to prevent injury

Applications

• Indoor electrical panel installations requiring Type 12 protection
• Industrial control enclosures subject to oil seepage or dust exposure
• Junction boxes for wiring connections in manufacturing environments
• Equipment housing where frequent access via quick-release mechanisms is needed

Procurement Notes

Verify that the specific order matches the A12106DL part number to ensure the correct 12x10x6 inch dimensions and Type 12 rating. Confirm the material specification as mild steel with polyester powder paint. Ensure compatibility with existing mounting brackets and latch mechanisms if replacing older units. Check for any regional compliance requirements beyond UL 508A.

Selection Notes

Select this model when a steel enclosure with Type 12 ingress protection is required for indoor use. The removable hinge feature distinguishes it from standard hinged doors, facilitating easier installation in tight spaces. Consider the 16-gauge steel thickness for structural integrity. This unit is suitable for applications involving non-corrosive liquids and oil seepage but is not rated for washdown or outdoor exposure.

Part Context

This component belongs to the Hoffman line of industrial enclosures, specifically designed for electrical and electronic equipment protection. The Type 12 rating indicates suitability for indoor environments where dust, dirt, and dripping non-corrosive liquids are present. The brand is known for robust metal enclosures used in various industrial sectors.

Replacement Considerations

When replacing, ensure the new unit maintains the 12x10x6 inch footprint and Type 12 rating. Verify that the quick-release latch mechanism is compatible with existing hardware. If upgrading, confirm that the replacement does not alter the mounting hole patterns or internal space requirements.
