A1614CHAL

Overview

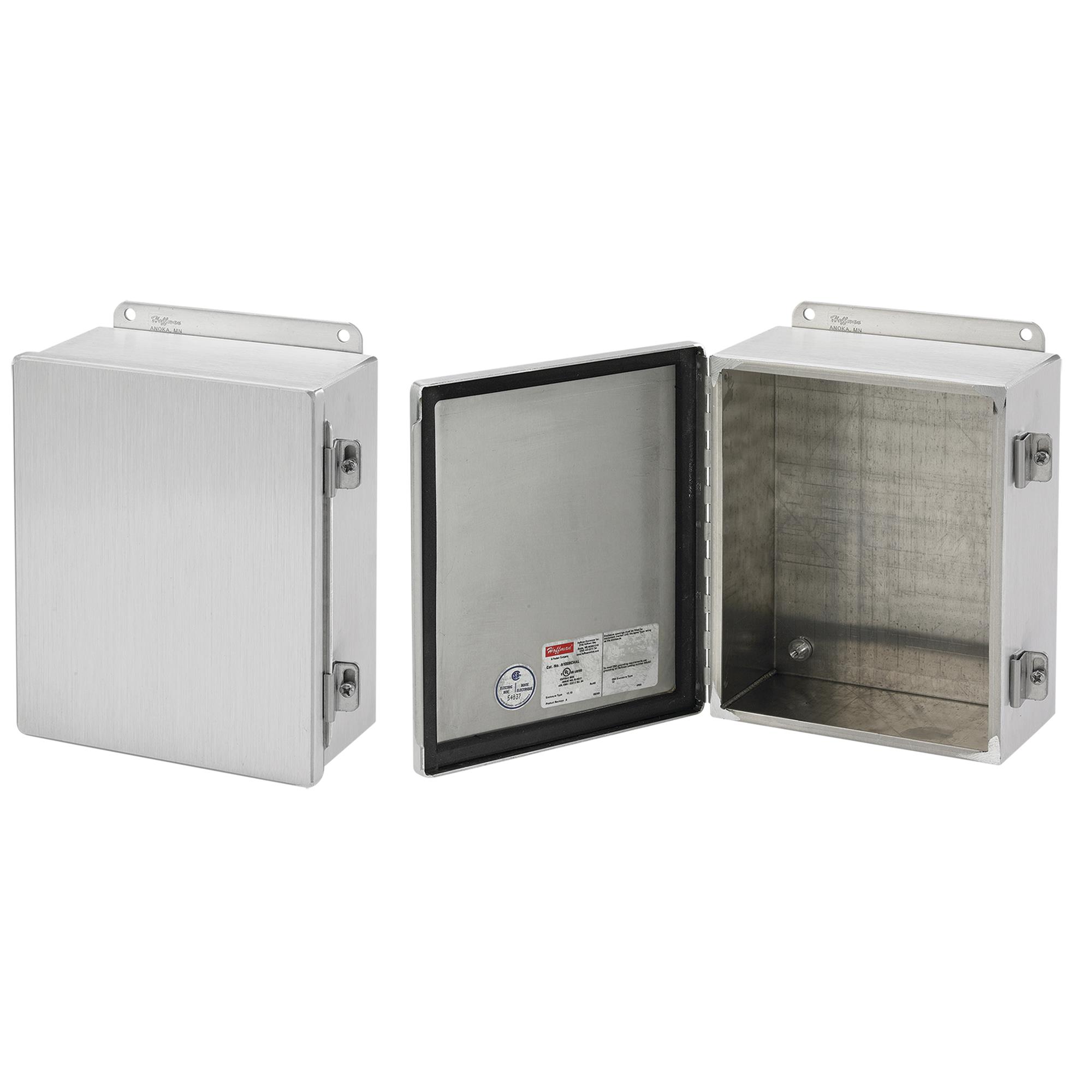

The A1614CHAL is an aluminum enclosure manufactured by Hoffman Enclosures, Inc. It measures 16 inches in height, 14 inches in width, and 6 inches in depth (406.4 mm x 355.6 mm x 152.4 mm). The unit features a solid cover with a continuous hinge design and utilizes a clamp mechanism for secure closure. Constructed from 5052 H-32 aluminum with a smooth brushed finish, it provides environmental protection rated at NEMA 12/13 and IP65 standards.

Feature Summary

• Constructed from 5052 H-32 aluminum with a smooth brushed finish
• Features a continuous hinge design for the solid cover
• Utilizes a clamp mechanism for secure closure
• Provides NEMA 12/13 and IP65 environmental protection ratings

Applications

• Industrial control panels requiring dust and drip protection
• Outdoor equipment housing needing corrosion resistance
• Electrical junction boxes in harsh environments

Procurement Notes

Verify that the required ingress protection aligns with NEMA 12/13 and IP65 specifications. Confirm dimensional compatibility with internal components given the 16x14x6 inch footprint. Ensure the continuous hinge and clamp style meet installation requirements. Check for any specific mounting hole patterns or accessory needs not included in the base unit.

Selection Notes

Select this model when aluminum construction is preferred over steel for weight or corrosion reasons. The continuous hinge allows the cover to remain attached during access, which is beneficial for frequent maintenance. Verify that the IP65 rating suffices for the intended environment, as it protects against dust and water jets but may not submersion.

Part Context

This part belongs to the Hoffman series of industrial enclosures designed for protecting electrical and electronic components. The use of 5052 H-32 aluminum offers a balance of strength and lightweight properties compared to steel alternatives. The continuous hinge design distinguishes it from models using separate hinges or screw-clamp covers without hinges.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
