A24201-040

Headers, Male Pins Overview

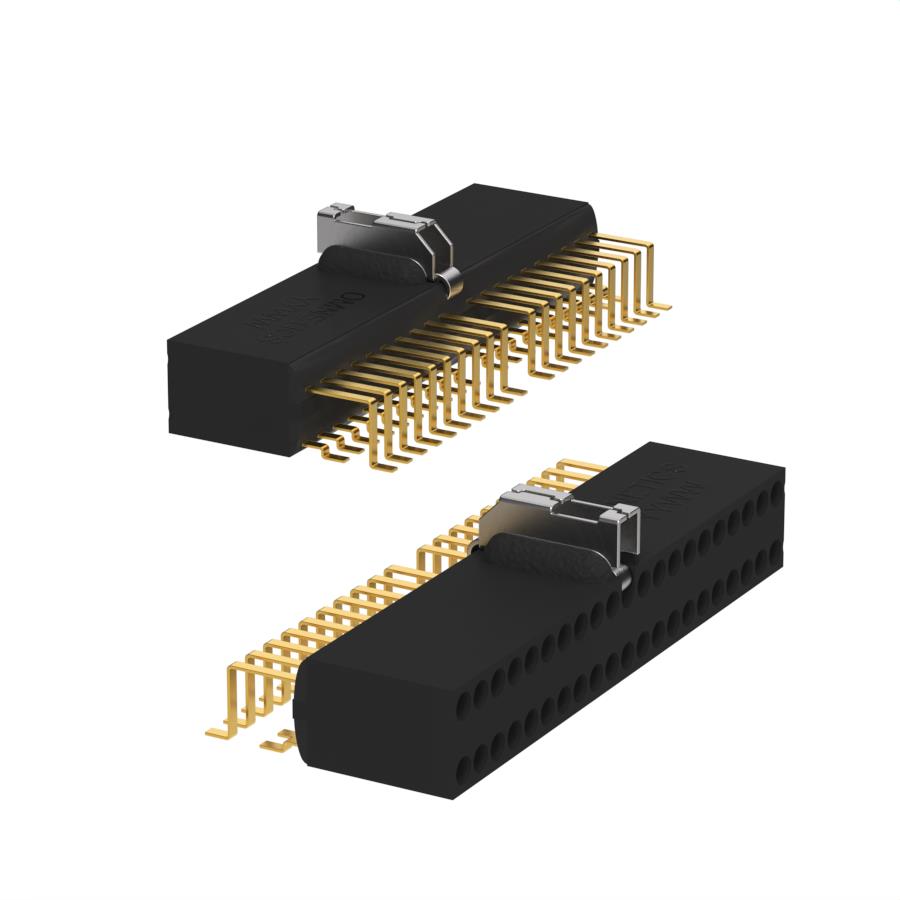

The Omnetics A24201-040 is a Micro Strip series connector header designed for surface mount applications. It features a right-angle configuration with 40 positions arranged in two rows. The connector utilizes a 0.050 inch (1.27mm) pitch and a 0.100 inch (2.54mm) row spacing. Contacts are made of copper beryllium with gold plating, rated at 3A per contact. The housing is constructed from black polyphenylene sulfide (PPS), providing an insulation height of 0.170 inches (4.32mm).

Headers, Male Pins Feature Summary

• Surface mount right-angle design for compact PCB integration.
• Gold-plated contacts ensure reliable signal transmission.
• Polyphenylene sulfide housing offers thermal stability.

Headers, Male Pins Applications

• High-density electronic assemblies requiring space efficiency.
• Industrial control systems utilizing surface mount technology.
• Telecommunications equipment with strict form factor constraints.

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm pin count, pitch, and termination style match the design requirements. Ensure compatibility with automated surface mount assembly processes. Confirm RoHS compliance status if required by project specifications. Cross-reference the manufacturer datasheet for precise mechanical dimensions and soldering profile recommendations to prevent component damage during installation.

Headers, Male Pins Selection Notes

Select this component when a high-density, right-angle male header is required for surface mounting. The 0.050-inch pitch allows for significant I/O density within limited board areas. Consider the 3A current rating and operating temperature range of -55°C to 125°C for environmental suitability. Evaluate the need for shrouded designs to guide mating connectors accurately.

Headers, Male Pins Part Context

This part belongs to the Omnetics Micro Strip family, known for miniature interconnect solutions. The series focuses on high-reliability connections for demanding environments. The A24201-040 specifically addresses needs for robust surface-mount headers with precise alignment features.

Headers, Male Pins Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. Verify mechanical footprint and electrical ratings before considering alternative manufacturers. Consult official Omnetics documentation for potential legacy replacements or updated series equivalents.
