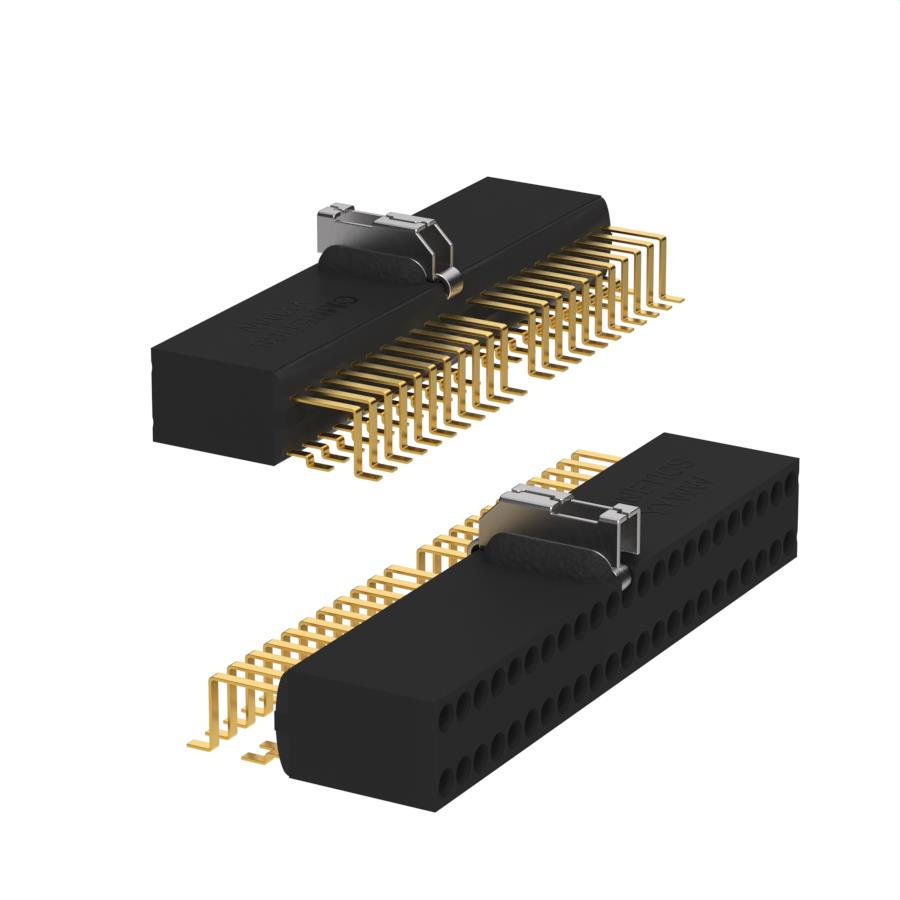

A24201-044 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Omnetics. Its product description is DRP-44-AA-LT. Review the specifications below when checking this part for your BOM.
Headers, Male Pins specifications for A24201-044
- Description：DRP-44-AA-LT
- Series：Micro Strip
- Mfr：Omnetics
- Package：Bulk
- Connector Type：Plug
- Contact Type：Male Pin
- Pitch - Mating：0.050" (1.27mm)
- Number of Positions：44
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Surface Mount, Right Angle
- Termination：Solder
- Fastening Type：Latch Holder
- Contact Length - Mating：-
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.170" (4.32mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：50.0µin (1.27µm)
- Contact Finish - Post：Tin-Lead
- Contact Material：Beryllium Copper
- Insulation Material：Polyphenylene Sulfide (PPS)
- Features：-
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：-
- Insulation Color：Black
- Current Rating (Amps)：3A per Contact
- Voltage Rating：-
Headers, Male Pins datasheet and documents for A24201-044
Headers, Male Pins Overview
The Omnetics A24201-044 is a Micro Strip series male pin header connector designed for surface mount installation. It features 44 positions arranged in a dual-row configuration with a 0.050 inch (1.27mm) mating pitch and a 0.100 inch (2.54mm) row spacing. The connector utilizes latching retention, gold-plated contacts with a 50.0µin thickness, and PPS insulation rated for -55°C to 125°C.
Headers, Male Pins Feature Summary
- Surface mount construction with latching retention mechanism
- Gold-plated contact surfaces for reliable signal transmission
- High-temperature resistant PPS insulation material
Headers, Male Pins Applications
- Board-to-cable interconnects
- Wire-to-board connections
- High-density electronic assemblies
Headers, Male Pins Procurement Notes
Verify the specific suffix codes against official Omnetics documentation to ensure correct termination style and orientation. Confirm that the selected variant matches the required surface mount footprint and latching mechanism specifications before finalizing procurement orders.
Headers, Male Pins Selection Notes
Select this component when a high-reliability, dual-row male header is required for surface mounting. Ensure the design accommodates the 0.100 inch row spacing and 0.050 inch pin pitch. Verify thermal requirements align with the 125°C maximum operating temperature of the PPS housing.
Headers, Male Pins Part Context
This part belongs to the Omnetics Micro Strip family, which specializes in miniature, high-reliability connectors. The series is engineered for applications demanding robust performance in compact form factors, utilizing precision manufacturing techniques to maintain consistent electrical and mechanical properties across diverse environments.
Headers, Male Pins Replacement Considerations
Compatible counterparts include A25202-044 and A25201-044 from the same manufacturer. These variants offer similar pin counts and pitches but may differ in termination style or mounting orientation. Cross-reference official datasheets to confirm mechanical compatibility.
