A24201-048

Headers, Male Pins Overview

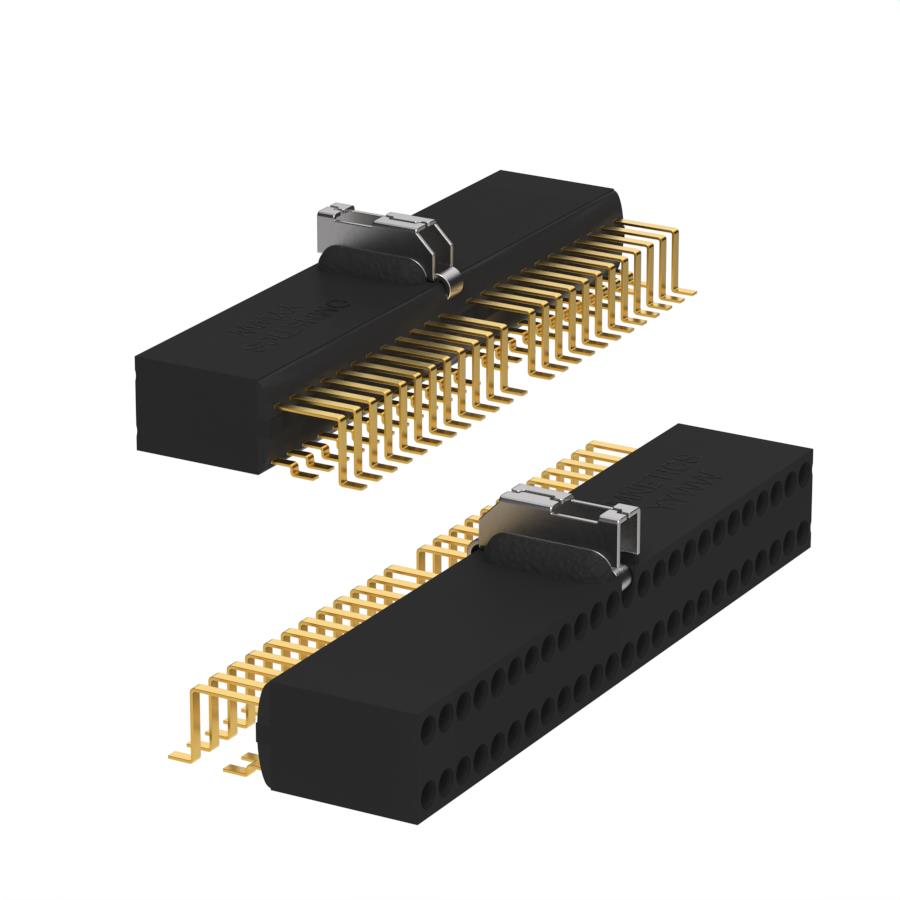

The Omnetics A24201-048 is a 48-position rectangular connector header from the Micro Strip series. It features male pin contacts with a 0.050" (1.27mm) pitch and a 0.100" (2.54mm) row spacing. Designed for surface mount, right-angle installation, it utilizes a latch bracket for secure mating. The contacts are gold-plated to a thickness of 50.0µin (1.27µm), ensuring reliable signal transmission in high-reliability applications.

Headers, Male Pins Feature Summary

• Surface mount right-angle design for compact PCB integration
• Gold-plated male pin contacts for enhanced conductivity
• Latch bracket mechanism ensures secure mating retention

Headers, Male Pins Applications

• High-density electronic interconnect systems
• Aerospace and defense communication modules
• Medical instrumentation circuit boards

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact contact plating specifications and material composition. Ensure compatibility with mating receptacles within the same Micro Strip family. Confirm that the surface mount footprint matches the target PCB layout requirements before procurement.

Headers, Male Pins Selection Notes

Select this component when a right-angle surface mount configuration is required for high-density connections. The 48-position count supports complex signal routing. Verify that the board space accommodates the right-angle profile and that the latch bracket does not interfere with adjacent components or enclosure structures during assembly.

Headers, Male Pins Part Context

This part belongs to the Omnetics Micro Strip series, which specializes in precision connectors for demanding environments. The series offers various configurations including through-hole and surface mount options. The A24201-048 specifically addresses needs for right-angle connectivity with robust mechanical retention via its latch system.

Headers, Male Pins Replacement Considerations

Compatible mating parts include A25204-048 and A25201-048. Verify mechanical fit and electrical continuity with these counterparts. No direct substitute part numbers are officially confirmed for cross-manufacturer replacement.
