A24204-036

Headers, Male Pins Overview

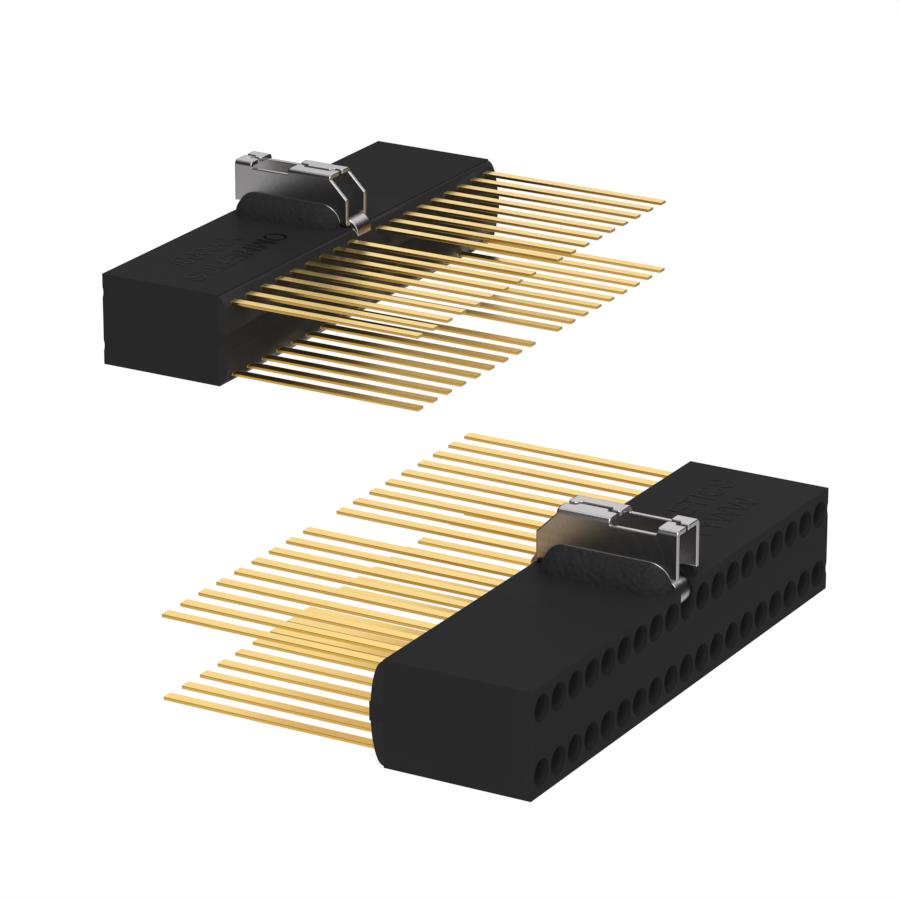

The Omnetics A24204-036 is a Micro Strip series connector header featuring 36 positions with a 0.050" (1.27mm) mating pitch. Designed for board-to-board applications, it utilizes through-hole termination and includes male pins. The connector employs a push-pull fastening mechanism and offers gold-plated contacts to ensure reliable signal transmission in high-reliability electronic systems.

Headers, Male Pins Feature Summary

• Micro Strip series design optimized for compact, high-density interconnects
• Push-pull fastening mechanism for secure mechanical engagement
• Gold-plated contact surfaces to enhance conductivity and corrosion resistance

Headers, Male Pins Applications

• Board-to-board connections in portable electronic systems
• High-reliability interconnects requiring compact form factors
• Industrial environments utilizing Micro Strip series components

Headers, Male Pins Procurement Notes

Verify the specific part number against official Omnetics documentation to confirm pin count, pitch, and termination style. Ensure compatibility with mating receptacles within the same Micro Strip series. Check for required accessories such as matching headers or cables to complete the assembly configuration.

Headers, Male Pins Selection Notes

Select this component when a 36-position, 0.050" pitch header with through-hole mounting is required. Consider the push-pull retention feature for secure connections in vibration-prone applications. Verify that the mating partner matches the female socket specifications of the Micro Strip family.

Headers, Male Pins Part Context

This component belongs to the Omnetics Micro Strip product line, which specializes in small, high-reliability connectors. The series supports various configurations including surface mount and through-hole options, catering to the demands of highly portable and rugged electronic systems.

Headers, Male Pins Replacement Considerations

Compatible counterparts include A24201-036 and A24202-036 from the same manufacturer. These alternatives share the 36-position count and 0.050" pitch but differ in mounting orientation or termination type.
