A24204-040

Headers, Male Pins Overview

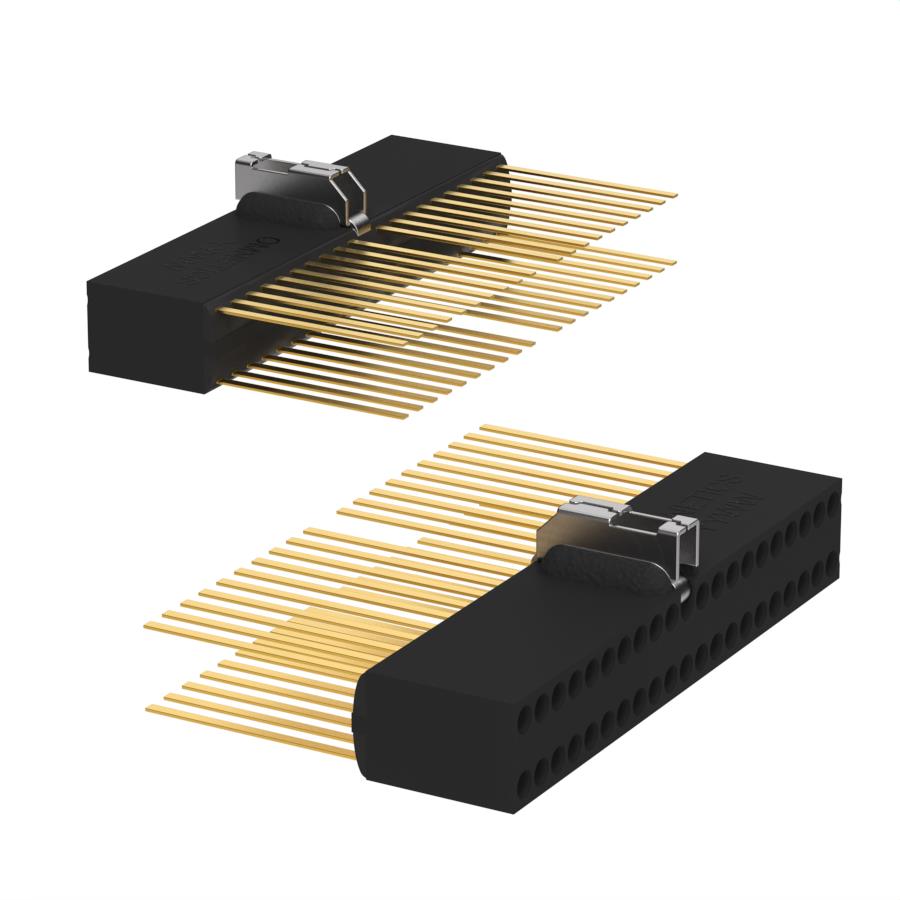

Omnetics A24204-040 is a male pin header connector from the DRP series, designed for through-hole mounting. It features 40 positions with a 0.050-inch (1.27mm) pitch and two rows. The contacts are gold-plated, and the housing utilizes PPS insulation. Rated at 3A per contact, it operates between -55°C and 125°C. This component provides reliable interconnection in compact electronic assemblies.

Headers, Male Pins Feature Summary

• Through-hole mounting configuration for secure board attachment
• Gold-plated male pin contacts ensuring low resistance
• Polyphenylene sulfide insulation for thermal stability

Headers, Male Pins Applications

• High-density circuit board interconnections
• Compact electronic device assembly
• Industrial control system wiring

Headers, Male Pins Procurement Notes

Verify the specific part number against official Omnetics documentation to confirm pin count and pitch specifications. Ensure compatibility with mating receptacles before integration into the design. Cross-reference datasheets for environmental ratings and current capacity requirements.

Headers, Male Pins Selection Notes

Select this component when a high-reliability male header with through-hole termination is required. Consider the 0.050-inch pitch and 40-position layout for space-constrained applications. Verify that the operating temperature range meets the system's environmental demands.

Headers, Male Pins Part Context

The A24204-040 belongs to Omnetics' DRP series of micro-miniature connectors. This series is engineered for high-density applications requiring robust performance in small form factors. The manufacturer specializes in high-reliability solutions for demanding industries.

Headers, Male Pins Replacement Considerations

Consult official Omnetics documentation for verified substitute part numbers. Do not assume cross-compatibility with generic headers without confirming pinout and mechanical dimensions.
