A25002-002

Headers, Receptacles, Female Sockets Overview

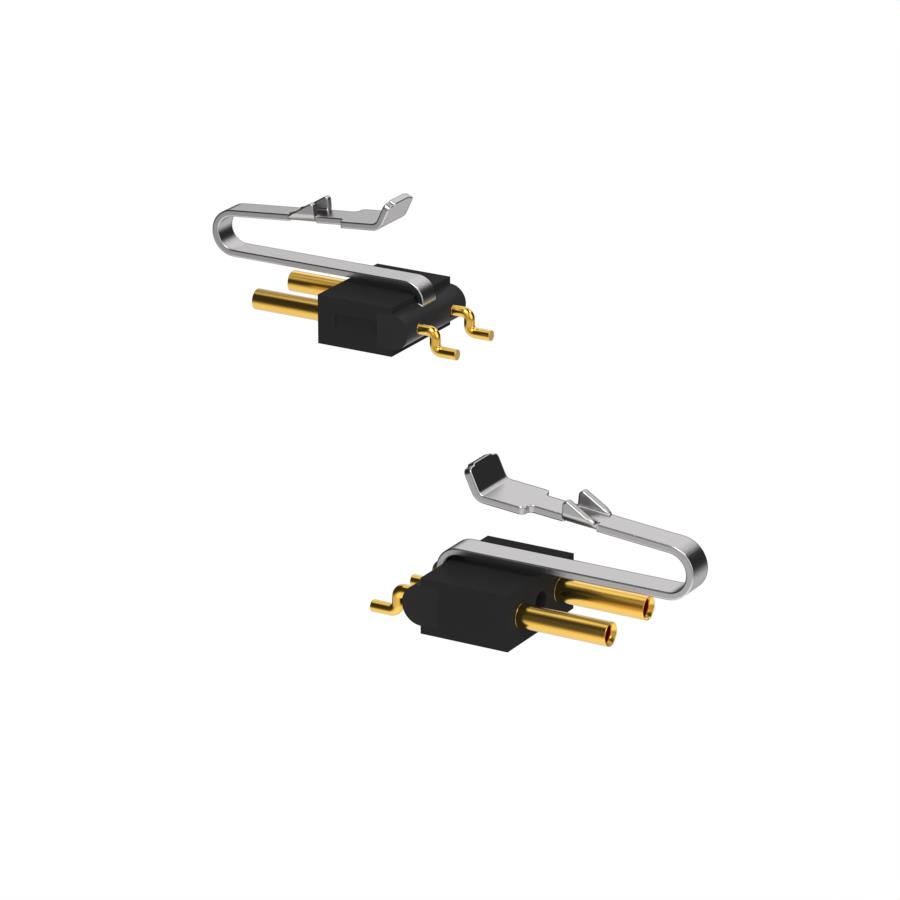

The Omnetics A25002-002 is a Micro Strip series receptacle connector featuring 2 positions with female socket contacts. It utilizes a 0.050-inch (1.27mm) pitch and is designed for surface mount, right-angle installation. The connector employs a push-pull locking mechanism and features gold-plated contacts with a thickness of 50.0µin (1.27µm). Constructed with black polyphenylene sulfide insulation, it supports a working temperature range of -55°C to 125°C and offers a rated current of 3A per contact.

Headers, Receptacles, Female Sockets Feature Summary

• Micro Strip series design for micro-miniature interconnect applications
• Push-pull locking mechanism for secure mating retention
• Right-angle surface mount termination for board space efficiency
• Gold-plated contacts ensuring reliable signal transmission

Headers, Receptacles, Female Sockets Applications

• Unmanned aerial systems requiring lightweight interconnects
• Medical devices demanding high-reliability connections
• Aviation and aerospace electronic assemblies
• Military equipment operating in challenging environments

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix LT against official Omnetics documentation to confirm plating and material specifications. Ensure compatibility with mating header part numbers within the same Micro Strip family. Confirm RoHS compliance status as regulatory requirements vary by region and manufacturing date. Cross-reference datasheet revisions to validate pinout and mechanical dimensions before integration.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a compact, right-angle surface mount solution is required for low-pin-count applications. The 0.050-inch pitch allows for dense circuit board layouts while maintaining robust electrical performance. Consider the push-pull locking feature if vibration resistance is critical. Evaluate thermal limits against the operational environment to ensure reliability within the specified temperature range.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Omnetics Micro Strip family, which specializes in micro and nano-miniature connectors. These components are engineered for high-reliability applications in sectors such as medical, military, and aerospace. The series is characterized by its rugged Flex-Pin contact system and small form factor, enabling connectivity in space-constrained and mission-critical designs.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible mating headers include A24002-002 and A24202-002 from the same Micro Strip series. Verify that substitute parts maintain identical pitch, locking mechanism, and mounting orientation. Consult official Omnetics cross-reference guides for validated alternatives.
