A25002-006

Headers, Receptacles, Female Sockets Overview

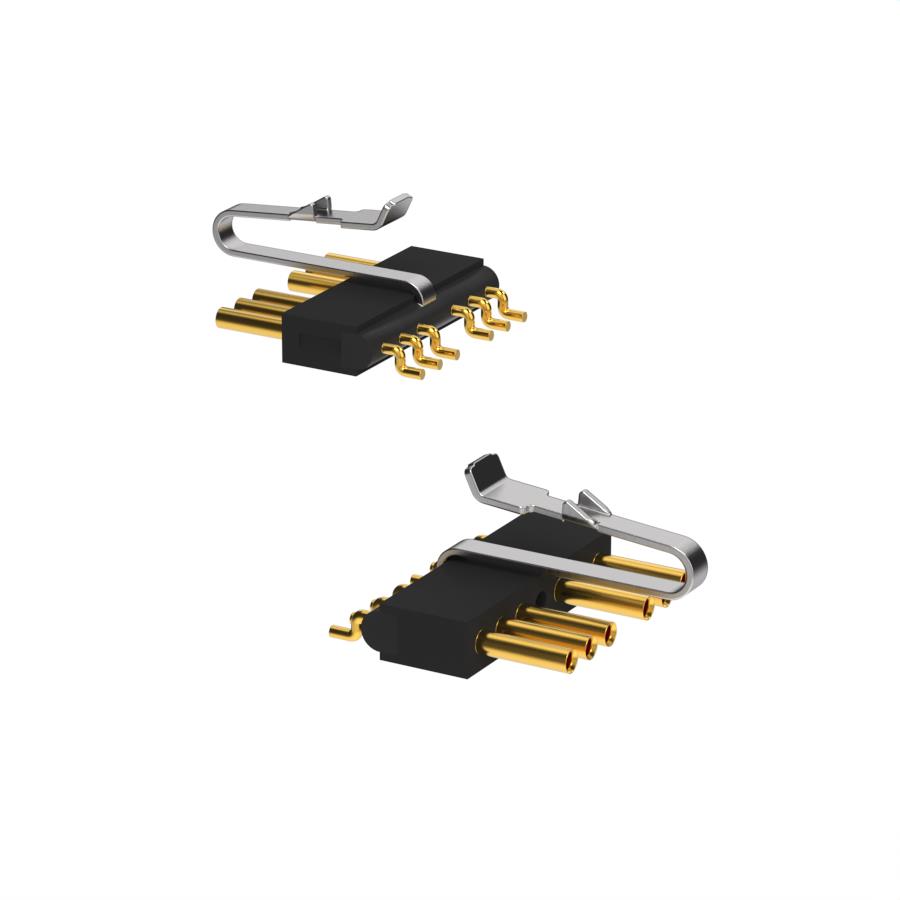

The Omnetics A25002-006 is a single-row Micro Strip receptacle connector featuring six female socket contacts. It utilizes a 0.050-inch (1.27mm) pitch and is designed for horizontal surface mount installation with an integrated latch mechanism. The connector employs a rugged Flex-Pin contact system spaced on 50 mil centerlines, ensuring high reliability in demanding environments.

Headers, Receptacles, Female Sockets Feature Summary

• Integrates a push-pull latch mechanism for secure mating engagement
• Utilizes a military-grade Flex-Pin contact system for durability
• Features gold-plated contacts to ensure reliable signal transmission

Headers, Receptacles, Female Sockets Applications

• Unmanned aerial systems interconnects
• Medical device internal connections
• Aviation and aerospace avionics
• Military electronic equipment

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix codes against official Omnetics documentation to confirm exact pin count and orientation. Ensure compatibility with mating header series such as A24002-006. Confirm RoHS compliance status if required by project specifications before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a single-row, low-profile solution is required for space-constrained designs. The horizontal surface mount configuration suits PCB layouts needing right-angle or inline connectivity. Verify that the 0.050-inch pitch aligns with the mating connector requirements and board spacing constraints.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Omnetics Micro Strip family, which specializes in micro-miniature connectors. The series is engineered for high-density applications requiring robust performance in challenging conditions. It represents the company's focus on precision interconnects manufactured in the United States for critical industries.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes include other single-row Micro Strip receptacles with identical 0.050-inch pitch and latch mechanisms. Verify mechanical dimensions and contact plating specifications before substituting. Cross-reference with Omnetics' official cross-reference guides for compatible alternatives.
