A25002-008

Headers, Receptacles, Female Sockets Overview

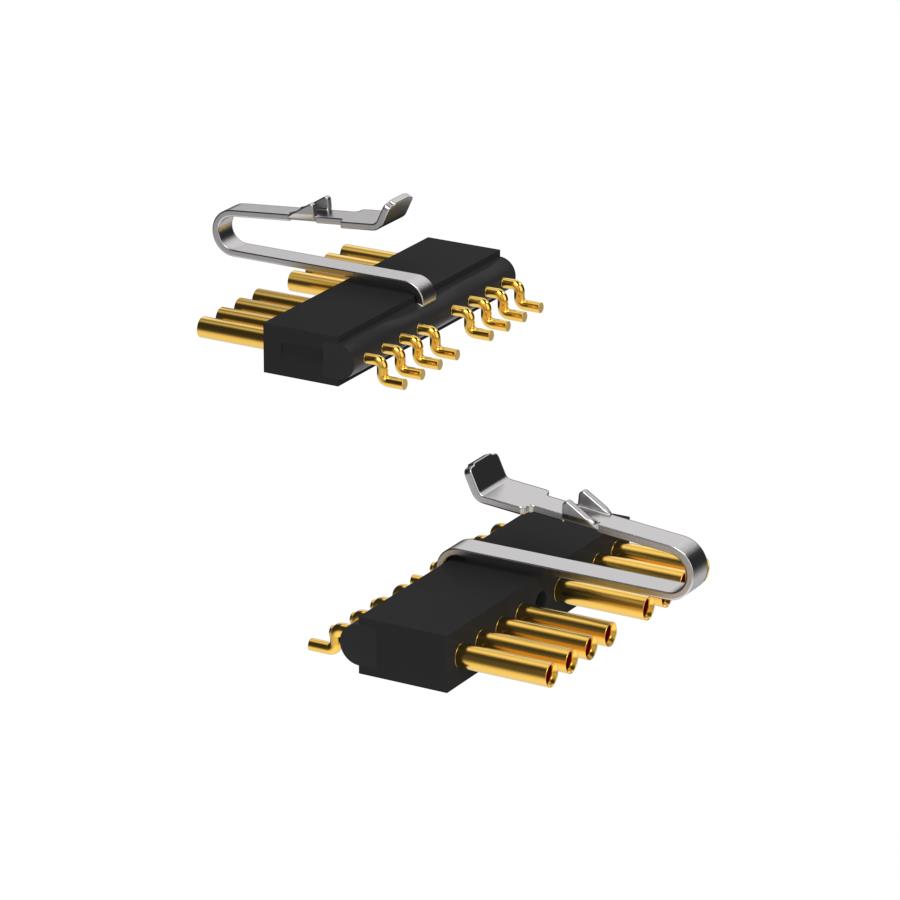

The Omnetics A25002-008 is an 8-position female socket connector from the Micro Strip series. It features a 0.050" (1.27mm) pitch and utilizes a surface mount, right-angle termination style. The contacts are gold-plated to ensure reliable signal transmission. Designed for board-to-board applications, this component offers high-density interconnect capabilities suitable for compact electronic assemblies requiring robust mechanical stability.

Headers, Receptacles, Female Sockets Feature Summary

• Micro Strip series design for high-density interconnects
• Right-angle surface mount termination for space-efficient PCB layouts
• Gold-plated contacts for enhanced conductivity and corrosion resistance

Headers, Receptacles, Female Sockets Applications

• Board-to-board connections in compact electronics
• High-density circuit board assemblies
• Space-constrained consumer devices

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix LT against the official datasheet to confirm plating thickness and material specifications. Ensure the right-angle orientation matches the PCB footprint requirements. Confirm RoHS compliance status with the manufacturer before integration into regulated products.

Headers, Receptacles, Female Sockets Selection Notes

Select this part for applications requiring a low-profile, right-angle connection between two boards. The 0.050" pitch allows for dense pin arrangements within limited board areas. Consider the surface mount technology compatibility with standard reflow soldering processes during the design phase.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Micro Strip family of micro-miniature connectors by Omnetics. These connectors are engineered for precision and reliability in demanding environments. The series is widely used in industries requiring small form factors and high performance, such as medical and aerospace systems.

Headers, Receptacles, Female Sockets Replacement Considerations

Check for direct substitutes within the same Micro Strip series with identical pin counts and mounting styles. Verify that any alternative maintains the 0.050" pitch and right-angle configuration to ensure mechanical fit.
